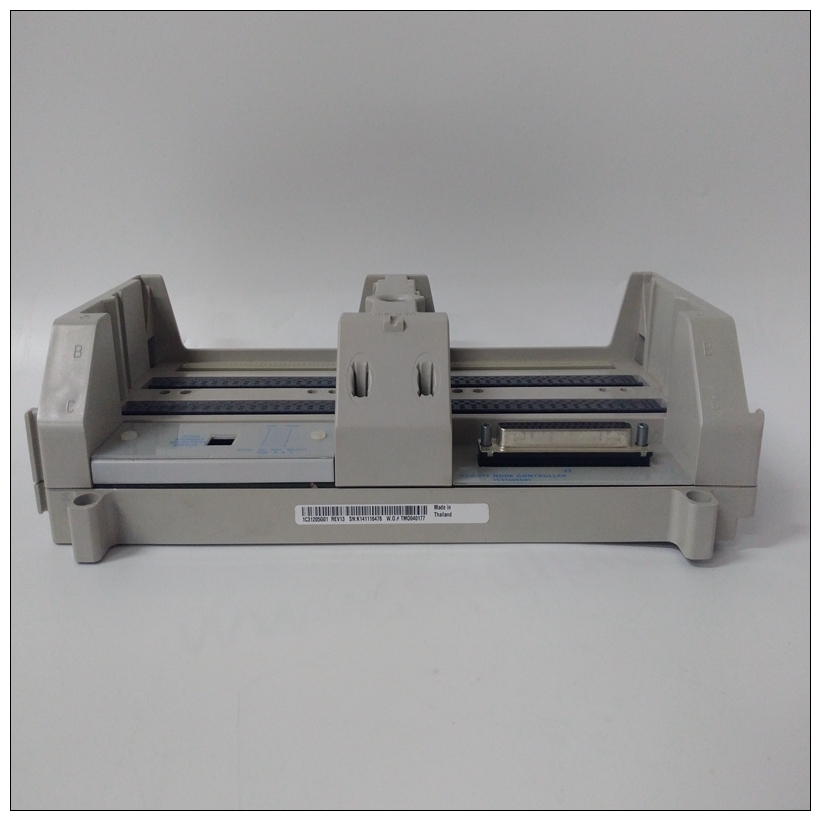

1C31205G01卡件,EMERSON使用教程
標頭J2和J3用于配置串行端口3和串行端口4，分別與SIM卡選擇配合使用。跳線就位時1-2，端口配置為DTE。當跨接線處于位置2-3時端口配置為DCE。端口的跳線設置應匹配相應SIM卡模塊的配置。安裝SIM卡模塊時，請注意，報頭上鍵入了方向正確。
有關準備過渡模塊的更多信息，請參閱MVME761用戶手冊（見附錄D，相關文件）。
接下來的三個圖說明了MVME2603/2604基板和帶互連和跳線的MVME761過渡模塊
1C31205G01卡件每個串行端口上的DCE/DTE配置設置。P2適配器準備（三排）MVME761轉換模塊的P2適配器路由同步和異步串行、并行和以太網信號MVME761。P2適配器還有一個50針內螺紋接頭（J2），用于攜帶來自MVME2603/2604的8位SCSI信號。運行SCSI設備，您可以安裝額外配備的過渡模塊帶有SCSI端口，如MVME712B。MVME761 P2適配器的準備包括安裝必要時，在收割臺J1上跨接以啟用SCSI端接電阻器。圖1-16顯示了跳線頭、電阻器、保險絲、，和連接器。有關準備過渡模塊和P2適配器，請參閱MVME761的用戶手冊（中列出附錄D，相關文件），如有必要。P2適配器準備（五排）MVME761轉換模塊使用五行P2適配器進行傳輸同步和異步串行、并行和以太網信號來自MVME2600系列VME模塊。P2適配器具有68針內螺紋連接器（J1），用于從MVME2600。（要運行SCSI設備，您可以安裝可選的前端面板擴展，MVME761EXT，靠近MVME761。面板擴展同時提供8位和16位SCSI。）的P2適配器MVME761還通過連接器J3和J4支持PMC輸入/輸出。MVME761 P2適配器的準備包括安裝必要時，在標頭J5上跨接以啟用SCSI端接電阻器。圖1-17顯示了跳線頭和連接器的位置。
Headers J2 and J3 are used to configure Serial Port 3 and Serial Port 4,
respectively, in tandem with SIM selection. With the jumper in position
1-2, the port is configured as a DTE. With the jumper in position 2-3, the
port is configured as a DCE. The jumper setting of the port should match
the configuration of the corresponding SIM module.When installing the SIM modules, note that the headers are keyed for
proper orientation.
For further information on the preparation of the transition module, refer
to the user’s manual for the MVME761 (listed in Appendix D, Related
Documentation) as necessary.
The next three figures illustrate the MVME2603/2604 base board and
MVME761 transition module with the interconnections and jumper
settings for DCE/DTE configuration on each serial port.P2 Adapter Preparation (Three-Row)
The P2 adapter for the MVME761 transition module routes the
synchronous and asynchronous serial, parallel, and Ethernet signals to the
MVME761. The P2 adapter also has a 50-pin female connector (J2) that
carries 8-bit SCSI signals from the MVME2603/2604. To run SCSI
devices, you may install an additional transition module that is equipped
with a SCSI port, such as the MVME712B.
Preparation of the P2 adapter for the MVME761 consists of installing a
jumper on header J1 to enable the SCSI terminating resistors if necessary.
Figure 1-16 illustrates the location of the jumper header, resistors, fuse,
and connectors.For further information on the preparation of the transition module and the
P2 adapter, refer to the user’s manual for the MVME761 (listed in
Appendix D, Related Documentation) as necessary.P2 Adapter Preparation (Five-Row)
The MVME761 transition module uses a five-row P2 adapter to transfer
the synchronous and asynchronous serial, parallel, and Ethernet signals to
and from the MVME2600 series VME module. The P2 adapter has a
68-pin female connector (J1) that carries 16-bit SCSI signals from the
MVME2600. (To run SCSI devices, you may install an optional front
panel extension, MVME761EXT, next to the MVME761. The panel
extension supplies both 8- and 16-bit SCSI.) The P2 adapter for the
MVME761 also supports PMC I/O via connectors J3 and J4.
Preparation of the P2 adapter for the MVME761 consists of installing a
jumper on header J5 to enable the SCSI terminating resistors if necessary.
Figure 1-17 illustrates the location of the jumper header and connectors.
