ABB IMHSS03 液壓伺服模塊器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ABB IMHSS03 是一款 液壓伺服模塊，用于精確控制液壓系統中的執行器（如液壓缸或液壓馬達）。它通常應用于 工業自動化、金屬加工、塑料機械、機床控制和重載工業設備，實現高精度液壓伺服控制。
1. 產品概述
- 制造商：ABB（Asea Brown Boveri）
- 產品型號：IMHSS03
- 產品類型：液壓伺服控制模塊（Hydraulic Servo Module）
- 應用領域：
- CNC 機床的液壓驅動
- 注塑機、沖壓機等液壓控制設備
- 鋼鐵、造紙、能源等行業的液壓伺服系統
- 其他精密液壓控制應用
2. 技術參數
| 參數 | 規格 |
|---|---|
| 控制類型 | 液壓伺服控制 |
| 輸入電壓 | 24V DC 或更高（根據系統配置） |
| 通信接口 | 可能支持 PROFIBUS、Modbus 或 CANopen（具體需參考型號說明） |
| 控制精度 | 高精度閉環液壓控制 |
| 兼容性 | ABB PLC、DCS、運動控制系統 |
ABB IMHSS03 通過 電子伺服閥或比例閥 實現對液壓系統的精準控制，具備高動態響應能力。
3. 主要功能
? 高精度液壓控制：適用于復雜工業環境，實現壓力、流量和位置的精準控制。
? 閉環反饋系統：結合液壓傳感器（如壓力傳感器、位移傳感器）優化控制精度。
? 模塊化設計：支持快速安裝、更換，適用于不同液壓系統。
? 智能診斷與保護：具備故障報警、過載保護、壓力異常檢測等功能。
? 兼容性強：可集成至 ABB PLC、DCS 或工業控制系統 中。
英文資料：
ABB IMHSS03 is a hydraulic servo module used for precise control of actuators in hydraulic systems, such as hydraulic cylinders or hydraulic motors. It is commonly used in industrial automation, metal processing, plastic machinery, machine tool control, and heavy-duty industrial equipment to achieve high-precision hydraulic servo control.
1. Product Overview
manufacturer: ABB（Asea Brown Boveri）
Product model: IMHSS03
Product type: Hydraulic Servo Module
Application areas:
Hydraulic Drive for CNC Machine Tools
Hydraulic control equipment such as injection molding machines and stamping machines
Hydraulic servo systems for industries such as steel, papermaking, and energy
Other precision hydraulic control applications
2. Technical parameters
Parameter specifications
Control type: Hydraulic servo control
Input voltage 24V DC or higher (depending on system configuration)
The communication interface may support PROFIBUS, Modbus, or CANopen (please refer to the model description for details)
High precision closed-loop hydraulic control with high control accuracy
Compatibility with ABB PLC DCS、 Motion control system
ABB IMHSS03 achieves precise control of hydraulic systems through electronic servo valves or proportional valves, with high dynamic response capability.
3. Main functions
? High precision hydraulic control: suitable for complex industrial environments, achieving precise control of pressure, flow rate, and position.
? Closed loop feedback system: Combining hydraulic sensors (such as pressure sensors and displacement sensors) to optimize control accuracy.
? Modular design: supports quick installation and replacement, suitable for different hydraulic systems.
? Intelligent diagnosis and protection: equipped with functions such as fault alarm, overload protection, and pressure anomaly detection.
? Strong compatibility: can be integrated into ABB PLC, DCS or industrial control systems.

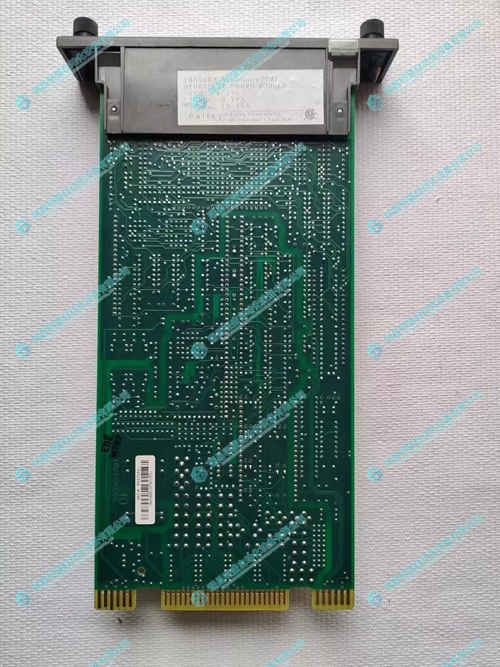

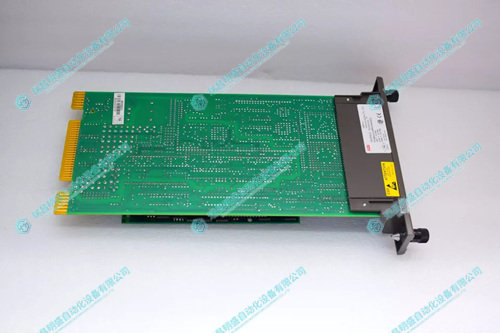

2.產 品 展 示
