Honeywell 51305348-100媒體適配器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Honeywell 51305348-100 媒體適配器 是一款高性能通信模塊，專為 Honeywell 自動化和控制系統設計。它通常用于工業環境中的網絡通信接口，支持多種協議和接口類型，實現分布式控制系統 (DCS) 與現場設備的無縫連接。
產品概述
品牌：
Honeywell (霍尼韋爾)型號：
51305348-100類別：
媒體適配器 (Media Adapter)用途：
- 提供靈活的通信媒介接口
- 實現控制器與終端設備的高效連接
主要功能
協議轉換：
- 支持多種工業通信協議（如 Modbus、Ethernet、TCP/IP 等），實現不同設備間的互聯互通。
數據橋接：
- 作為橋接設備，用于不同通信介質間的數據傳輸。
增強型接口：
- 提供標準化物理接口（如 RS485、以太網或光纖），適配多種工業設備。
實時數據傳輸：
- 低延遲、高速通信，滿足工業自動化實時性需求。
工業級設計：
- 具備抗震動、高溫容忍度和抗電磁干擾能力，適用于惡劣工業環境。
技術規格
| 參數 | 詳細信息 |
|---|---|
| 支持協議 | Modbus, Ethernet, TCP/IP, Honeywell 專有協議 |
| 通信接口 | RS232, RS485, Ethernet, 光纖等 |
| 傳輸速率 | 高達 1 Gbps |
| 工作電壓 | 24V DC |
| 功耗 | ≤5W |
| 工作溫度 | -20°C 至 +60°C |
| 存儲溫度 | -40°C 至 +85°C |
| 濕度范圍 | 5% 至 95%（無冷凝） |
| 安裝方式 | DIN 導軌或機架安裝 |
| 診斷功能 | 支持運行狀態指示和故障告警功能 |
英文資料：
The Honeywell 51305348-100 media adapter is a high-performance communication module designed specifically for Honeywell automation and control systems. It is commonly used as a network communication interface in industrial environments, supporting multiple protocols and interface types to achieve seamless connection between distributed control systems (DCS) and field devices.
Product Overview
Brand:
Honeywell
model:
51305348-100
Category:
Media Adapter
Purpose:
Provide flexible communication media interfaces
Efficient connection between controllers and terminal devices
major function
Protocol conversion:
Support multiple industrial communication protocols (such as Modbus, Ethernet, TCP/IP, etc.) to achieve interconnectivity between different devices.
Data bridging:
As a bridging device, it is used for data transmission between different communication media.
Enhanced interface:
Provide standardized physical interfaces (such as RS485, Ethernet, or fiber optic) to adapt to various industrial devices.
Real time data transmission:
Low latency and high-speed communication meet the real-time requirements of industrial automation.
Industrial grade design:
Capable of resisting vibration, high temperature tolerance, and electromagnetic interference, suitable for harsh industrial environments.
technical specifications
Detailed parameter information
Supports protocols Modbus, Ethernet, TCP/IP, and Honeywell proprietary protocols
Communication interfaces RS232, RS485, Ethernet, fiber optic, etc
Transmission rate up to 1 Gbps
Working voltage 24V DC
Power consumption ≤ 5W
Working temperature -20 ° C to+60 ° C
Storage temperature -40 ° C to+85 ° C
Humidity range 5% to 95% (non condensing)
Installation method: DIN rail or rack installation
Diagnostic function supports operation status indication and fault alarm function

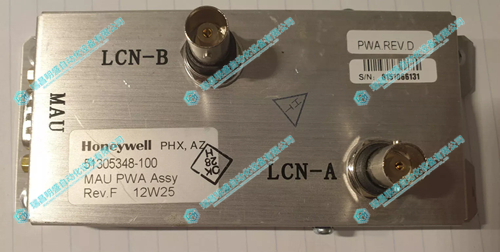

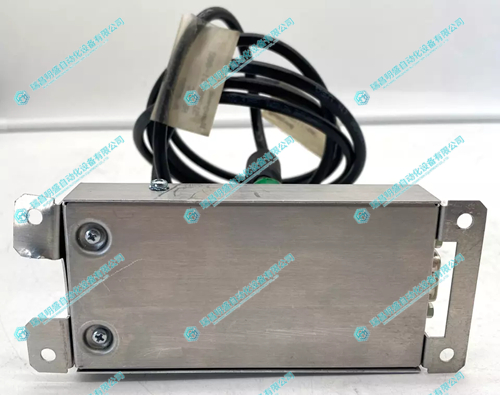

2.產 品 展 示
