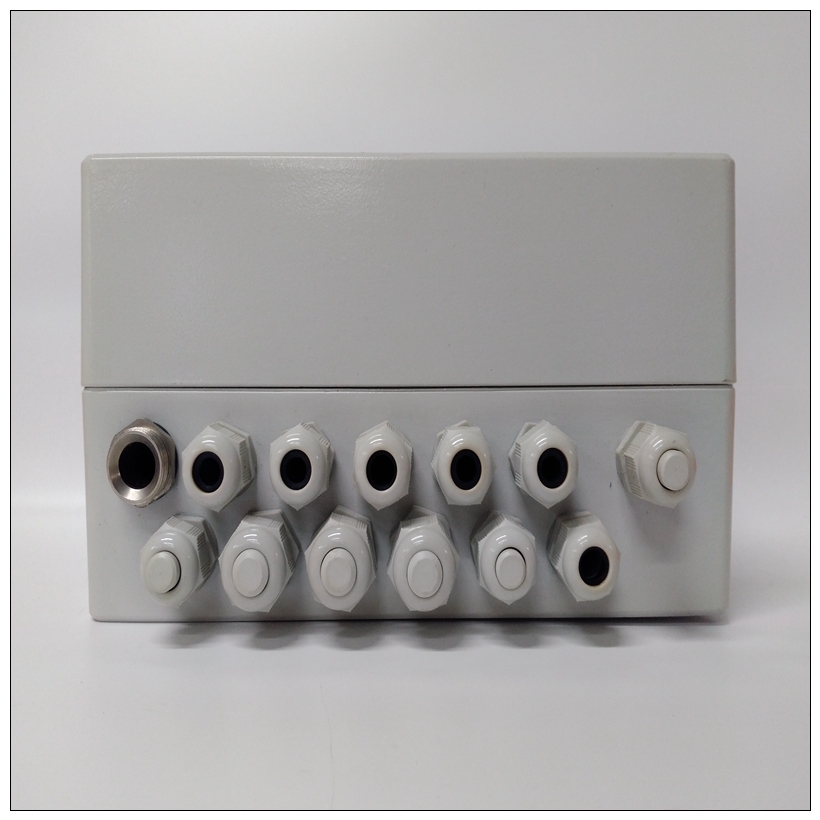

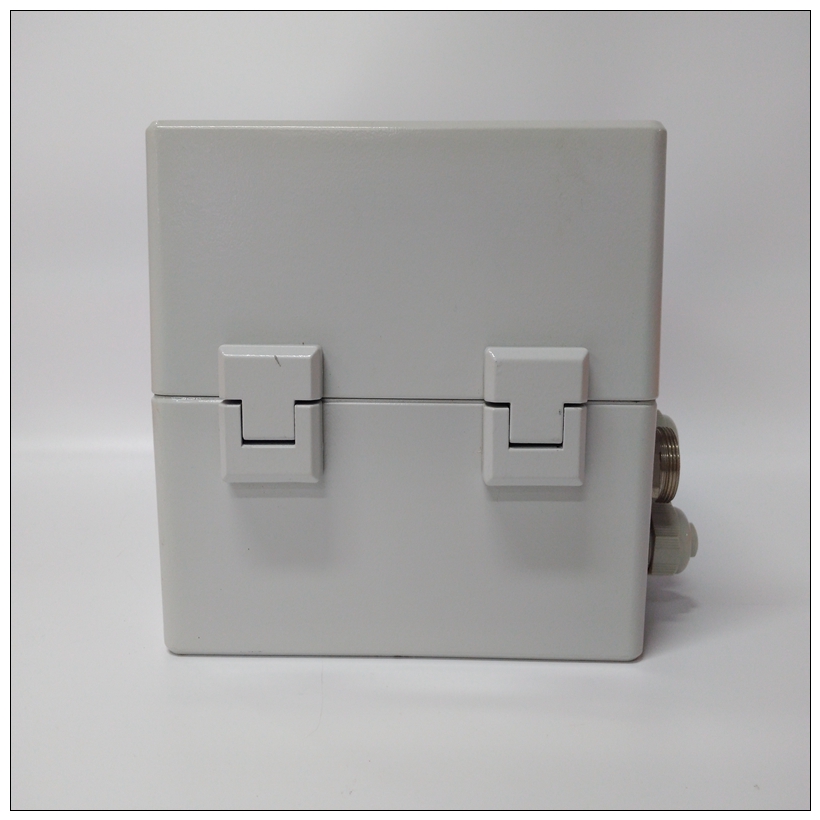

PFEA113-65控制器,PFEA113-65配置手冊
PFEA113的Profibus DP通信3.13.1關于Profibus-DP的一般數據PFEA113中Profibus DP通信的目的是提供高速上級系統和PFEA113之間的通信鏈路。Profibus-DP是一種多點通信協議，旨在將PLC連接到傳感器（DP指“分布式外圍設備”）。物理接口為RS 485（雙線電纜）。最大傳輸速率為12 Mbit/s。該協議基于主從原則。PFEA113是從機。
PFEA113-65控制器現場總線主機一直輪詢從機，這意味著輪詢以固定的時間間隔進行當PFEA113沒有新數據可用時。每個從機的地址范圍為0到125。Profibus需要消息格式、通信參數和錯誤代碼在所謂的類型文件（也稱為GSD文件）中提供了從文件的個數（見附錄a.8）Profibus DP-PFEA113的GSD文件）。該文件隨后存儲在Profibus主機中。啟動時，Profibus主設備驗證具有給定類型文件的從設備確實可用在公共汽車上。3.13.2主從通信主設備和從設備通過輸出緩沖器和輸入緩沖器進行通信。主機讀取輸入緩沖區，并在每個掃描周期向輸出緩沖區寫入一次現場總線。從機輪詢輸出緩沖區并更新輸入緩沖區中的值。短線路高達1500 kbit/s<6.6 m。如果您使用的是12 Mbits/s，則應避免使用短截線。如果使用EN 50 170規定的線路A，總線端接電阻組合如圖3-23所示，以確保線路上有定義的空閑狀態電勢。EN 50170中規定總線為A型線。應避免使用B型線。介質的物理性質如表3-3和表3-4所示。Profibus DP Communication with PFEA113
3.13.1 General Data about Profibus DP
The purpose of the Profibus DP communication in PFEA113 is to provide a high speed
communication link between superior systems and the PFEA113.
Profibus DP is a multidrop communication protocol intended to connect PLCs to sensors (DP
means “Distributed Peripherals”).
The physical interface is RS 485 (two wire cable).
The maximum transfer rate is 12 Mbit/s.
The protocol is based on a master-slave principle. The PFEA113 is a slave. A Profibus master
polls the slaves all the time, that means the polling is going on with a fixed time interval even
when no new data is available from the PFEA113.
Each slave has an address in the range 0 to 125.
Profibus requires that the message format, communication parameters and error codes
of slaves are made available in a so called type file, also known as GSD file (See Appendix A.8
Profibus DP - GSD File for PFEA113). This file is then stored in the Profibus Master.
At start-up the Profibus Master verifies that the Slave with the given type file is indeed available
on the bus.
3.13.2 Master-slave Communication
The Master and the slave communicate via an output buffer and an input buffer.
The master reads the input buffer and writes to the output buffer once every scan cycle for
Profibus.
The slave polls the output buffer and updates values in the input buffer.Stub lines up to 1500 kbit/s < 6.6 m.
If you are using 12 Mbits/s you should avoid stub lines.
If you are using line A as specified by EN 50 170, the bus terminating resistance combination
is as shown in Figure 3-23, so that a defined idle state potential is ensured on the line.
The bus line is specified in EN 50170 as line type A. Line type B should be avoided.
The physical properties of the media are shown in Table 3-3 and Table 3-4.
