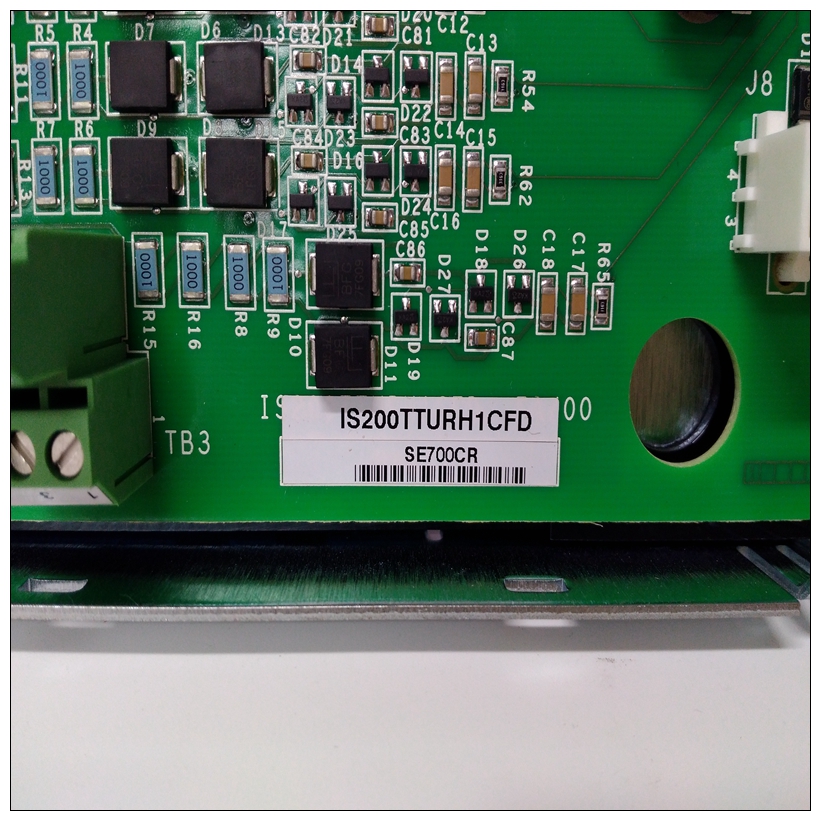

IS200TTURH1CFD通用電氣模塊,IS200TTURH1CFD配置手冊
在VersaMax輸入/輸出模塊和載波手冊中，GFK-1504K：? 第2-38頁的注釋應添加“承運人不能接通電源或拔下插頭”。
? 跳線操作說明應包括添加“通電時不能修改跳線位置”?？焖偃腴T指南安裝前檢查
仔細檢查所有運輸集裝箱是否損壞。如果任何設備如有損壞，請立即通知送貨服務。保存損壞的運輸集裝箱以供交付服務機構檢查。拆包后設備，記錄所有序列號。保存運輸集裝箱以及包裝材料，以防需要運輸或裝運任何部件系統的。
IS200TTURH1CFD通用電氣模塊1.只需將NIU點擊到位，即可將其安裝在DIN導軌上。注：NIU和連接載體必須安裝在同一節上35mm x 7.5mm DIN導軌。DIN導軌必須具有導電性（未上漆）適當飾面
接地。（有關信息，請參閱標題“模塊安裝”空間要求或模塊方向，或者如果您正在安裝NIU處于過度振動區域）。2、在NIU上安裝電源。電源上的閂鎖必須處于解鎖位置。對齊接頭和閂柱并按下電源模塊向下，直到電源卡入到位。將鎖閂轉到鎖定位置，以將電源固定到
Documentation Update
In the VersaMax I/O Modules and Carriers Manual, GFK-1504K:
? The note on page 2-38 should have the addition “Carriers cannot be
plugged together or unplugged with power applied”.
? The descriptions of the operation of jumpers should have the
addition “Jumper positions cannot be modified with power applied”.Quick Start Guide
Preinstallation Check
Carefully inspect all shipping containers for damage. If any equipment is
damaged, notify the delivery service immediately. Save the damaged
shipping container for inspection by the delivery service. After unpacking
the equipment, record all serial numbers. Save the shipping containers
and packing material in case it is necessary to transport or ship any part
of the system.
1. Install the NIU on the DIN Rail by simply clicking it into place.
Note: The NIU and connecting carriers
must be installed on the same section
of 35mm x 7.5mm DIN rail.
The DIN rail must have a conductive
(unpainted) finish for proper
grounding.(Refer to the heading Module Installation for information about
space requirements or module orientation, or if you are installing
the NIU in an area of excessive vibration).
2. Install the Power Supply on the NIU.
The latch on the power supply must be
in the unlocked position.
Align the connectors and the latch post
and press the power supply module
down until the two tabs on the bottom of
the power supply click into place.
