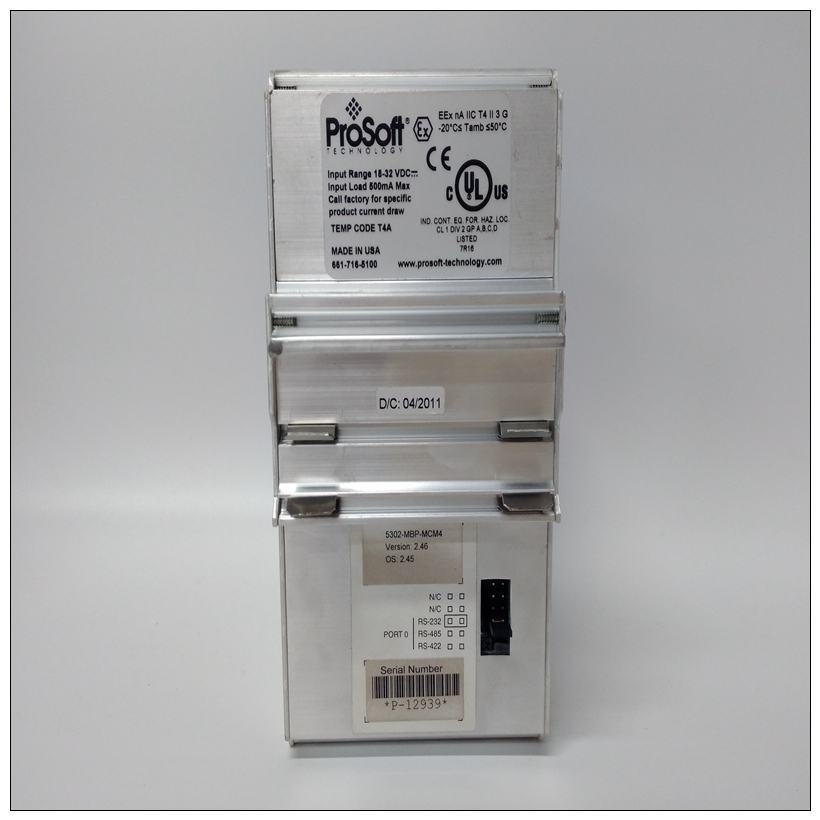

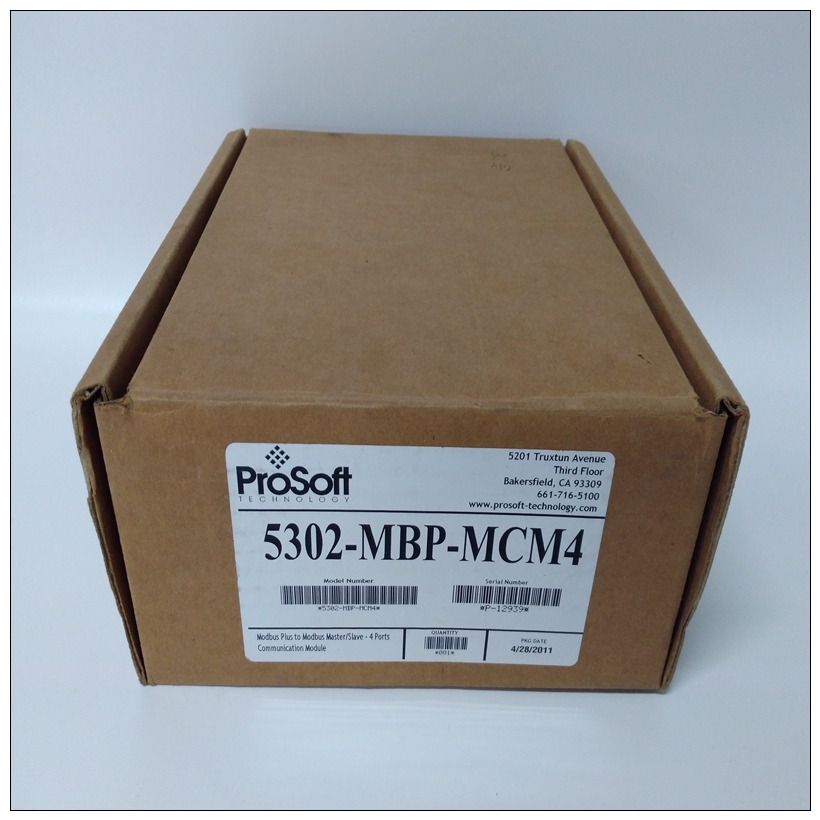

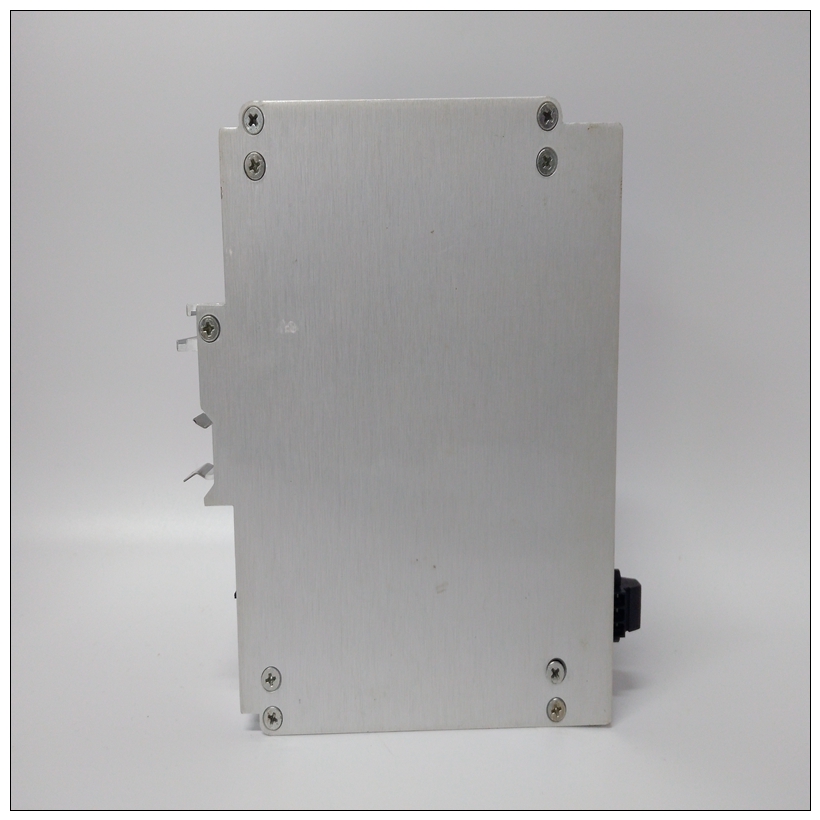

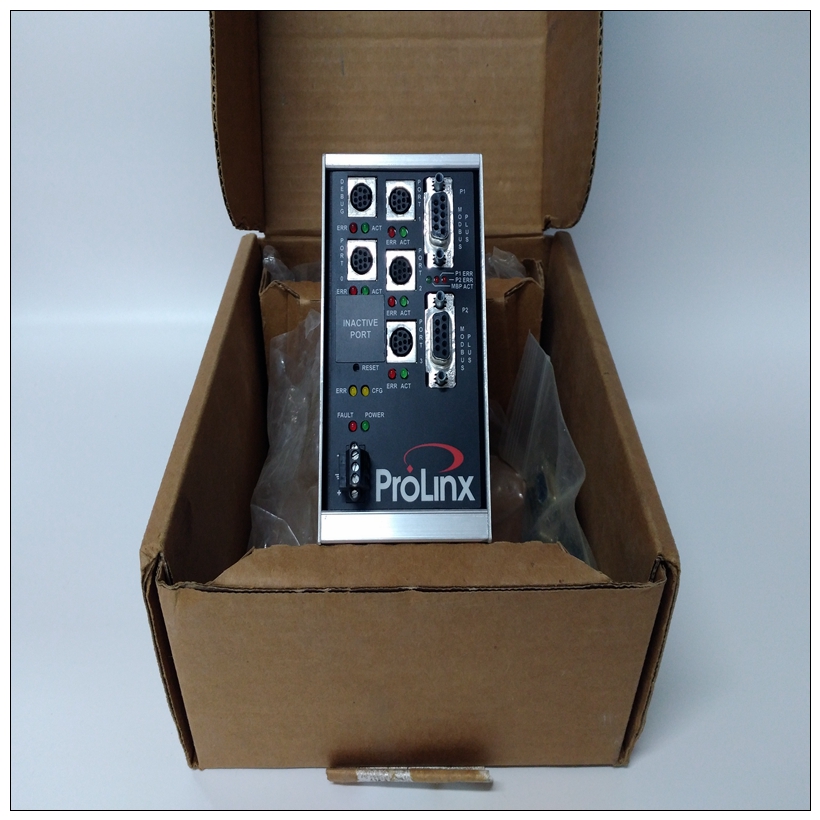

PROSOFT 5302-MBP-MCM4工業模塊,5302-MBP-MCM4數據庫
安裝要求
RTU模塊設計為插入任何90-30系列或CEGELEC Alspa 8000背板插槽。有關安裝模塊的信息，請參閱PLC安裝手冊。
2.2功率要求250mA@5VDC
2.3模塊安裝1、斷開PLC CPU/機架的電源。2、將模塊安裝在空閑插槽中。3、給PLC通電。
4、使用HHP或PLC配置軟件配置通信端口參數。5、為DCS監控選擇適當?shù)?I參考。
PROSOFT 5302-MBP-MCM4工業模塊將Modbus主機連接到適當?shù)亩丝凇?、啟動Modbus主應用程序。
2.4模塊配置在模塊連接到Modbus主機之前，應使用適當?shù)膮?shù)。您可以使用手持式編程器（HHP）或PLC軟件來配置參數。該模塊可與任何CPU一起使用，但需要PLC CPU版本5.01或更高版本，以配置。如果您不熟悉Modbus幀協議或RTU模塊選項，請先閱讀第3章：操作。
2.4.1手持式編程器的配置1、將RTU接口模塊安裝到PLC中。2、給PLC機架通電。PLC將執行其通電診斷，并出現菜單在手持式程序員的顯示器上。3.在手持式編程器上輸入以下按鍵順序。
Mounting Requirements
The RTU Module is designed to plug into any 90-30 series or CEGELEC Alspa 8000 backplane slot.
Please refer to the PLC Installation manual for information on installing the module.
2.2
Power requirements
250mA @ 5VDC
2.3
Module Installation
1.
Remove power from the PLC CPU/Rack.
2.
Install the module in a free slot.
3.
Apply power to the PLC.
4.
Configure the communication port parameters with the HHP or PLC configuration software.
5.
Select an appropriate %I reference for DCS monitoring.
6.
Connect the Modbus master to the appropriate port.
7.
Start Modbus master application.
2.4
Module Configuration
Before the module is connected to the Modbus Master, it should be configured with the appropriate
parameters. You may use either the Hand Held Programmer (HHP) or PLC software to configure the
parameters. This module can be used with any CPU but requires a PLC CPU version 5.01 or later to
configure. If you are not familiar with the Modbus frame protocol or the RTU Module options, first read
chapter 3: Operation.
2.4.1 Configuration with the Hand Held Programmer
1.
Install the RTU Interface module into the PLC.
2.
Apply power to the PLC rack. The PLC will perform its power-up diagnostics and a menu will appear
on the Hand Held Programmer's display.
3.
Enter the following key sequence on the Hand Held Programmer.
