Multilin 102L218跳閘整流器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Multilin 102L218 跳閘整流器是 GE Multilin 系列中的一種電力設備，用于提供電力系統中跳閘繼電器的必要電源。其主要作用是為電力保護設備提供穩定的直流電源，確保在電力系統出現故障或其他問題時，保護設備能夠及時、準確地觸發跳閘操作，從而保護設備和系統的安全。
主要應用領域
電力系統保護
- 在發電廠、變電站和配電系統中，為跳閘繼電器和其他保護設備提供穩定的電源。
- 確保在電力系統發生故障時，保護設備能夠可靠地執行跳閘操作。
變電站自動化
- 為變電站的自動化系統提供直流電源，支持繼電器和控制設備的正常運行。
- 確保自動化保護系統的高可靠性和穩定性。
工業應用
- 在工業電力系統中，為各種保護繼電器和控制設備提供電源。
- 支持制造業、石油化工等行業中的電力保護需求。
發電廠
- 在發電廠中，為發電機保護系統提供電源，確保發電機的可靠保護和控制。
- 提供穩定的直流電源，支持發電機的故障處理和自動化操作。
主要特點
穩定的直流電源
- 提供可靠的直流電源，確保保護設備能夠正常工作。
- 保持穩定的電壓輸出，防止電源波動對保護設備的影響。
高可靠性
- 設計用于工業環境，具備防塵、防水和抗電磁干擾功能。
- 提供長時間穩定運行，適應惡劣的工作環境。
多種輸出選項
- 提供多種電壓和電流輸出選項，滿足不同繼電器和設備的需求。
- 支持不同的輸出配置，適應不同的電力系統要求。
監控和報警
- 配備狀態指示燈和報警功能，實時監控整流器的工作狀態。
- 提供故障檢測和報警，幫助運維人員及時處理問題。
易于安裝和維護
- 設計為易于安裝和維護的結構，簡化設備的操作和維護過程。
- 提供直觀的接線端子和接口，方便接線和連接。
英文資料：
The Multilin 102L218 trip rectifier is a power equipment in the GE Multilin series, used to provide the necessary power supply for trip relays in power systems. Its main function is to provide stable DC power supply for power protection equipment, ensuring that in the event of faults or other problems in the power system, the protection equipment can trigger tripping operations in a timely and accurate manner, thereby protecting the safety of the equipment and system.
Main application areas
Power system protection
Provide stable power supply for trip relays and other protective equipment in power plants, substations, and distribution systems.
Ensure that protective equipment can reliably perform tripping operations in the event of a power system failure.
substation automation
Provide DC power supply for the automation system of the substation, supporting the normal operation of relays and control equipment.
Ensure high reliability and stability of the automated protection system.
Industrial applications
In industrial power systems, provide power to various protective relays and control equipment.
Support the power protection needs in industries such as manufacturing and petrochemicals.
power plant
In power plants, provide power to the generator protection system to ensure reliable protection and control of the generator.
Provide stable DC power supply, support fault handling and automated operation of generators.
main features
Stable DC power supply
Provide reliable DC power supply to ensure the normal operation of protective equipment.
Maintain stable voltage output to prevent power fluctuations from affecting protective equipment.
high reliability
Designed for industrial environments, it has dust-proof, waterproof, and anti electromagnetic interference functions.
Provide long-term stable operation and adapt to harsh working environments.
Multiple output options
Provide multiple voltage and current output options to meet the needs of different relays and devices.
Support different output configurations to adapt to different power system requirements.
Monitoring and alarm
Equipped with status indicator lights and alarm functions, real-time monitoring of the working status of the rectifier.
Provide fault detection and alarm to assist operation and maintenance personnel in handling problems in a timely manner.
Easy to install and maintain
Designed as an easy to install and maintain structure, simplifying the operation and maintenance process of the equipment.
Provide intuitive wiring terminals and interfaces for easy wiring and connection.

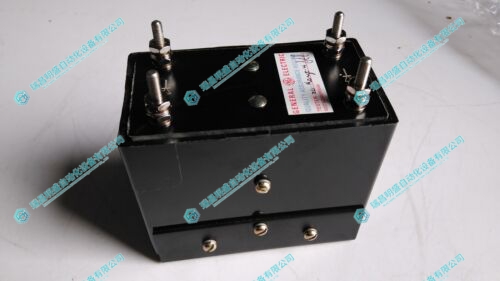

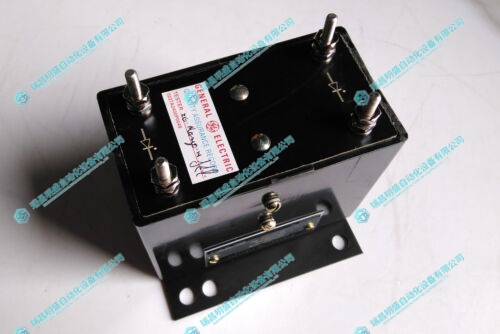

2.產 品 展 示
