Multilin 369-HI-0-M-F-0電機管理繼電器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Multilin 369-HI-0-M-F-0電機管理繼電器是一款專門用于保護和管理中低壓電動機的先進設備。它提供全面的電機保護、監測和控制功能，廣泛應用于各種工業環境，確保電動機的可靠性和效率。
主要應用領域
工業電機保護
- 適用于各種工業電動機，包括泵、風機、壓縮機和傳送帶等。
- 提供過載、過熱、短路和接地故障保護，確保電動機的安全運行。
過程控制系統
- 集成在過程控制系統中，實現電動機的自動化控制和保護。
- 適用于石油化工、鋼鐵、造紙等行業的過程控制系統。
水處理和廢水處理
- 保護水處理和廢水處理設施中的電動機，防止因故障導致的停機和損壞。
- 提供實時監測和診斷功能，提高系統的可靠性和效率。
礦業和金屬加工
- 適用于礦業和金屬加工行業中的大型電動機保護。
- 提供綜合的保護和監測功能，確保設備的長時間穩定運行。
HVAC系統
- 在暖通空調系統中保護和管理電動機，確保系統高效運行。
- 提供綜合保護功能，防止因電動機故障導致的系統停機。
主要特點
全面的保護功能
- 過載保護：防止電動機因過載而損壞。
- 溫度保護：通過熱敏電阻監測電動機溫度，提供過熱保護。
- 短路保護：快速檢測和響應短路故障。
- 接地故障保護：檢測并隔離接地故障，防止設備損壞。
- 失速保護：防止電動機在負載突變或其他異常情況下失速。
高級監測和診斷
- 實時監測電動機的運行狀態和參數，如電流、電壓、功率和溫度。
- 提供故障診斷和報警功能，幫助維護人員快速識別和解決問題。
- 數據記錄和事件日志：詳細記錄運行數據和事件，便于分析和維護。
靈活的通信功能
- 支持多種通信協議，如Modbus、DNP3等，便于集成到現有的自動化系統中。
- 提供以太網和串行接口，支持遠程監控和數據傳輸。
用戶友好的界面
- 配備LCD顯示屏和按鍵，便于現場設置和操作。
- 提供基于PC的軟件工具，支持遠程配置和監控。
堅固耐用
- 設計堅固耐用，適用于惡劣的工業環境。
- 提供長時間可靠運行，減少維護成本和停機時間。
英文資料：
The Multilin 369-HI-0-M-F-0 motor management relay is an advanced device specifically designed to protect and manage medium and low voltage motors. It provides comprehensive motor protection, monitoring, and control functions, widely used in various industrial environments to ensure the reliability and efficiency of electric motors.
Main application areas
Industrial motor protection
Suitable for various industrial motors, including pumps, fans, compressors, and conveyor belts.
Provide overload, overheating, short circuit, and ground fault protection to ensure the safe operation of the motor.
process control system
Integrated into the process control system to achieve automated control and protection of electric motors.
Process control systems suitable for industries such as petrochemicals, steel, and papermaking.
Water treatment and wastewater treatment
Protect the electric motors in water and wastewater treatment facilities to prevent downtime and damage caused by malfunctions.
Provide real-time monitoring and diagnostic functions to improve the reliability and efficiency of the system.
Mining and metal processing
Suitable for the protection of large electric motors in the mining and metal processing industries.
Provide comprehensive protection and monitoring functions to ensure the long-term stable operation of the equipment.
HVAC system
Protect and manage electric motors in HVAC systems to ensure efficient operation of the system.
Provide comprehensive protection function to prevent system shutdown caused by motor failure.
main features
Comprehensive protection function
Overload protection: prevents the motor from being damaged due to overload.
Temperature protection: Monitor the temperature of the motor through a thermistor to provide overheating protection.
Short circuit protection: Quickly detect and respond to short circuit faults.
Ground fault protection: detect and isolate ground faults to prevent equipment damage.
Stall protection: prevents the motor from stalling in case of sudden load changes or other abnormal situations.
Advanced monitoring and diagnosis
Real time monitoring of the operating status and parameters of the electric motor, such as current, voltage, power, and temperature.
Provide fault diagnosis and alarm functions to help maintenance personnel quickly identify and solve problems.
Data recording and event logs: Detailed recording of operational data and events for easy analysis and maintenance.
Flexible communication capabilities
Supports multiple communication protocols such as Modbus, DNP3, etc., making it easy to integrate into existing automation systems.
Provide Ethernet and serial interfaces, supporting remote monitoring and data transmission.
User friendly interface
Equipped with an LCD display screen and buttons for easy on-site setup and operation.
Provide PC based software tools that support remote configuration and monitoring.
durable
Designed to be sturdy and durable, suitable for harsh industrial environments.
Provide long-term reliable operation, reduce maintenance costs and downtime.

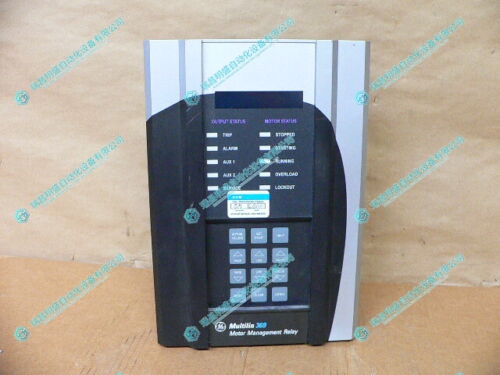

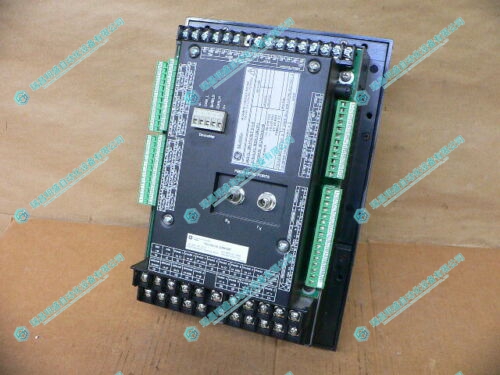

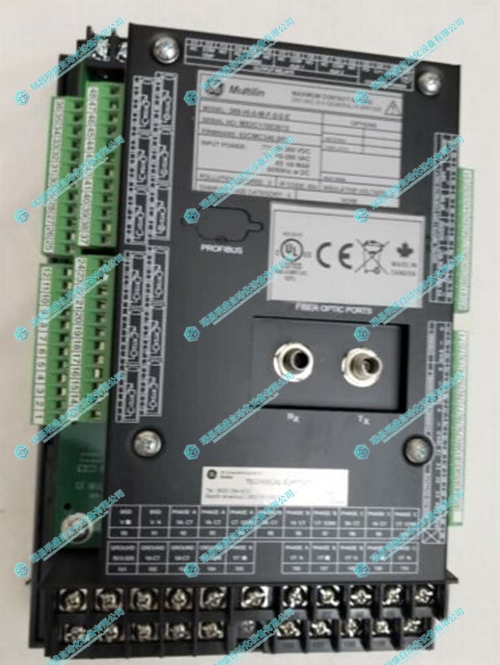

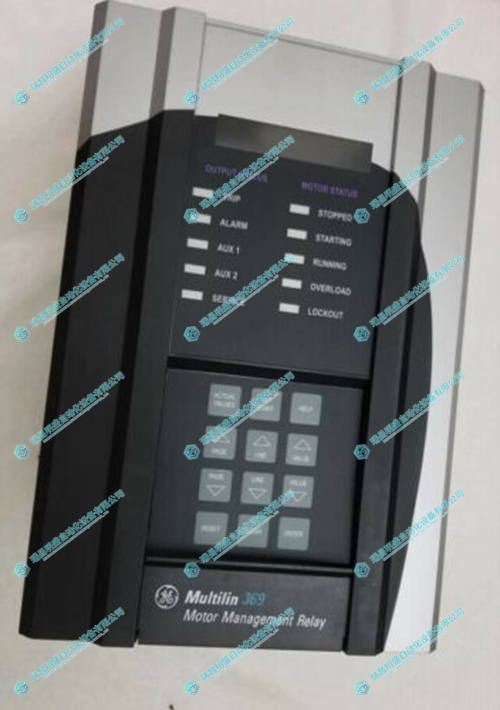

2.產 品 展 示
