Multilin 369-HI-R-M-0-E電機管理繼電器
1.產 品 資 料 介 紹：
中文資料：
Multilin 369-HI-R-M-0-E是一款電機管理繼電器，專為中高壓電機保護和管理而設計。它提供了全面的保護、控制和監測功能，適用于各種工業應用。以下是該設備的一些主要特性和應用領域的詳細信息：
主要特性：
全面保護：
- 過載保護：監測電機負載，防止過載損壞電機。
- 欠電壓和過電壓保護：保護電機免受電壓波動影響。
- 相不平衡保護：檢測并處理三相電流或電壓的不平衡。
- 欠功率保護：防止由于負載減少或斷相導致的電機損壞。
高級監測功能：
- 熱模型監測：通過熱模型計算電機的溫升，提供實時熱保護。
- 振動監測：監測電機振動情況，預防機械故障。
- 數據記錄和事件日志：存儲關鍵事件和故障記錄，便于故障分析和維護。
用戶友好接口：
- LCD顯示屏：提供直觀的界面，顯示實時數據和故障信息。
- 可編程輸入/輸出：靈活配置，滿足不同應用需求。
- 遠程通訊：支持多種通訊協議（如Modbus），便于集成到上位系統中進行遠程監控和控制。
高可靠性：
- 堅固耐用：適應各種工業環境，具有抗干擾和抗震動設計。
- 自診斷功能：定期自檢，確保設備正常運行并提示維護需求。
應用領域：
- 工業電機保護：廣泛應用于礦山、鋼鐵、石油化工等行業的電機保護和管理。
- 泵和壓縮機：用于泵、風機和壓縮機的保護，防止過載、欠壓等故障。
- 發電廠和變電站：用于發電和變電設備的電機保護，確保系統穩定運行。
- HVAC系統：用于加熱、通風和空調系統中的電機管理。
技術規格：
- 電源電壓：支持多種電源電壓，適應不同應用場景。
- 測量精度：高精度電流、電壓和溫度測量，確保保護準確。
- 通訊接口：支持RS485、Modbus等通訊接口，便于系統集成。
- 工作溫度：適用于寬溫范圍的工作環境，保證設備在惡劣條件下的穩定運行。
安裝和維護：
- 簡易安裝：設計緊湊，適用于標準DIN導軌安裝。
- 易于維護：模塊化設計，方便更換和升級。
- 詳細文檔：提供詳細的安裝和操作手冊，幫助用戶快速上手。
英文資料：
Multilin 369-HI-R-M-0-E is a motor management relay designed specifically for the protection and management of medium and high voltage motors. It provides comprehensive protection, control, and monitoring functions, suitable for various industrial applications. Here are some detailed information on the main features and application areas of the device:
Main features:
Comprehensive protection:
Overload protection: Monitor the motor load to prevent overload damage to the motor.
Undervoltage and overvoltage protection: protects the motor from voltage fluctuations.
Phase imbalance protection: detect and handle the imbalance of three-phase current or voltage.
Underpower protection: prevents motor damage caused by reduced load or phase failure.
Advanced monitoring function:
Thermal model monitoring: Calculate the temperature rise of the motor through a thermal model to provide real-time thermal protection.
Vibration monitoring: Monitor the vibration of the motor to prevent mechanical failures.
Data recording and event logs: Store critical event and fault records for easy fault analysis and maintenance.
User friendly interface:
LCD display screen: Provides an intuitive interface, displaying real-time data and fault information.
Programmable input/output: flexible configuration to meet different application requirements.
Remote communication: Supports multiple communication protocols (such as Modbus), making it easy to integrate into the upper system for remote monitoring and control.
High reliability:
Durable and sturdy: Suitable for various industrial environments, with anti-interference and anti vibration design.
Self diagnostic function: Regular self inspection to ensure the normal operation of the equipment and prompt maintenance requirements.
Application areas:
Industrial motor protection: widely used for motor protection and management in industries such as mining, steel, and petrochemicals.
Pumps and compressors: used for the protection of pumps, fans, and compressors to prevent overload, undervoltage, and other faults.
Power plants and substations: used for motor protection of power generation and substation equipment to ensure stable system operation.
HVAC system: used for motor management in heating, ventilation, and air conditioning systems.
Technical specifications:
Power Supply Voltage: Supports multiple power supply voltages to adapt to different application scenarios.
Measurement accuracy: high-precision measurement of current, voltage, and temperature to ensure accurate protection.
Communication interface: Supports RS485, Modbus and other communication interfaces for system integration.
Working temperature: Suitable for a wide temperature range of working environments, ensuring stable operation of equipment under harsh conditions.

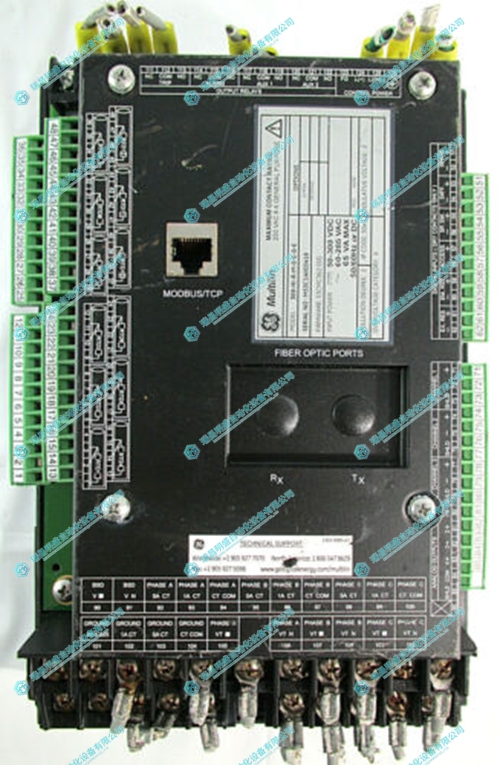

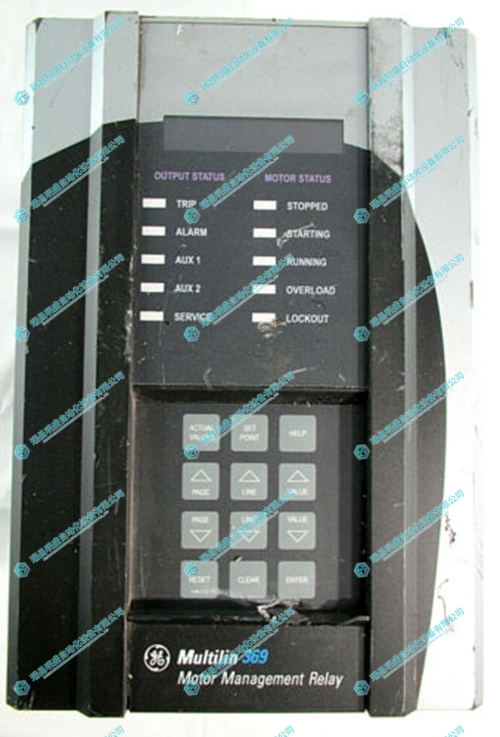

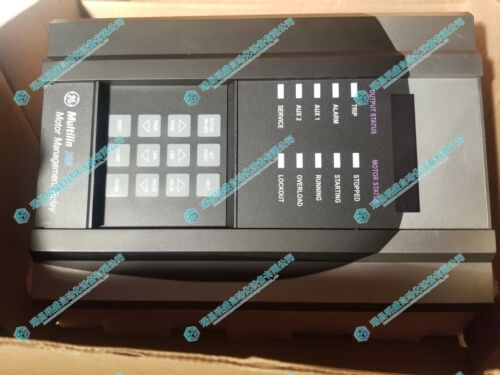

2.產 品 展 示
