MULTILIN 745-W2-P1-G1管理繼電器
1.產 品 資 料 介 紹：
中文資料：
Multilin 745-W2-P1-G1管理繼電器是一種高性能、智能化的電力系統保護和管理設備，專為變電站和發電廠中的電動機保護設計。以下是該管理繼電器的主要應用領域和功能特點：
應用領域
變電站
- 提供變電站內電動機的保護和控制。
- 確保電動機在不同工況下的安全運行，防止故障和損壞。
發電廠
- 用于發電設備中的電動機保護和管理。
- 提供電動機的啟動、運行和故障保護，確保發電系統的穩定性。
工業設施
- 應用于各類工業場合，如制造廠、化工廠和煉油廠。
- 保護關鍵生產設備中的電動機，確保生產過程的連續性和高效運行。
水處理設施
- 在水處理廠和泵站中用于電動機的保護和監控。
- 確保水泵等關鍵設備的正常運行，防止因故障造成的停機。
石油和天然氣
- 適用于油氣行業中的電動機保護和管理。
- 確保鉆井平臺、油田和管道中的電動機的可靠運行。
主要功能和特點
- 多功能保護：提供全面的電動機保護功能，包括過流、欠壓、過壓、相不平衡、地故障和熱保護等。
- 實時監測和控制：實時監測電動機的運行狀態和參數，如電流、電壓、功率和溫度等。
- 事件記錄和故障分析：內置事件記錄和故障分析功能，幫助快速診斷和解決問題。
- 通訊能力：支持多種通訊協議，如Modbus、DNP3、IEC 61850等，便于與SCADA系統和其他監控系統集成。
- 靈活配置：用戶可根據實際需求靈活配置保護參數和邏輯控制。
- 用戶友好界面：直觀的LCD顯示屏和簡便的操作界面，便于用戶進行設置和監控。
- 自檢功能：內置自檢功能，確保繼電器自身的可靠性和穩定性。
結論
Multilin 745-W2-P1-G1管理繼電器以其高性能、多功能和可靠性，廣泛應用于電力系統和各類工業場合中的電動機保護和管理。它通過提供全面的保護和實時監控，確保電動機和整個系統的安全穩定運行，是現代電力系統和工業控制中不可或缺的重要設備。
英文資料：
The Multilin 745-W2-P1-G1 management relay is a high-performance, intelligent power system protection and management device designed specifically for motor protection in substations and power plants. The following are the main application areas and functional characteristics of this management relay:
application area
transformer substation
Provide protection and control for electric motors within the substation.
Ensure the safe operation of the motor under different working conditions to prevent malfunctions and damage.
power plant
Used for motor protection and management in power generation equipment.
Provide start-up, operation, and fault protection for electric motors to ensure the stability of the power generation system.
Industrial facilities
Applied to various industrial settings, such as manufacturing plants, chemical plants, and refineries.
Protect the electric motors in critical production equipment to ensure the continuity and efficient operation of the production process.
Water treatment facilities
Used for the protection and monitoring of electric motors in water treatment plants and pump stations.
Ensure the normal operation of key equipment such as water pumps to prevent shutdowns caused by malfunctions.
Oil and gas
Suitable for motor protection and management in the oil and gas industry.
Ensure the reliable operation of electric motors in drilling platforms, oil fields, and pipelines.
Main functions and features
Multi functional protection: Provides comprehensive motor protection functions, including overcurrent, undervoltage, overvoltage, phase imbalance, ground fault, and thermal protection.
Real time monitoring and control: Real time monitoring of the operating status and parameters of the motor, such as current, voltage, power, and temperature.
Event recording and fault analysis: Built in event recording and fault analysis functions help quickly diagnose and solve problems.
Communication capability: Supports multiple communication protocols such as Modbus, DNP3, IEC 61850, etc., making it easy to integrate with SCADA systems and other monitoring systems.
Flexible configuration: Users can flexibly configure protection parameters and logic control according to their actual needs.
User friendly interface: intuitive LCD display screen and simple operation interface, making it easy for users to set up and monitor.
Self check function: Built in self check function to ensure the reliability and stability of the relay itself.
conclusion
The Multilin 745-W2-P1-G1 management relay is widely used for motor protection and management in power systems and various industrial applications due to its high performance, versatility, and reliability. It ensures the safe and stable operation of the motor and the entire system by providing comprehensive protection and real-time monitoring, and is an essential equipment in modern power systems and industrial control.

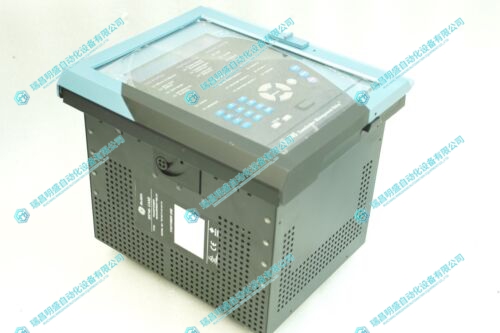

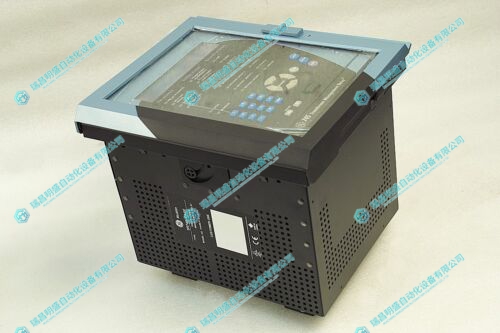

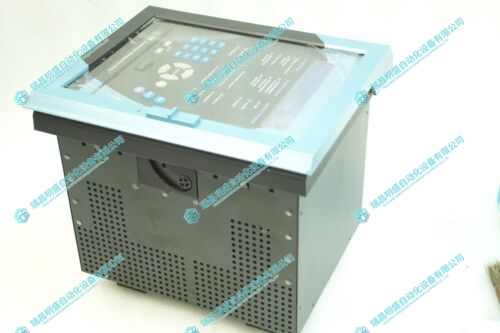

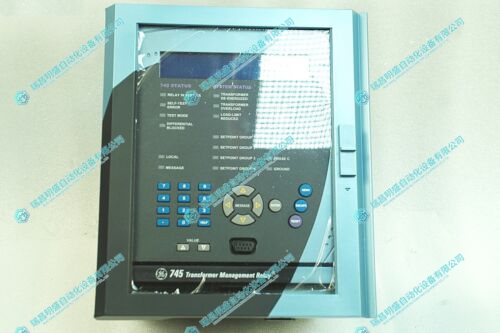

2.產 品 展 示
