Multilin T60G03HCHF8LH6繼電器模塊
1.產 品 資 料 介 紹：
中文資料：
Multilin T60G03HCHF8LH6 是 GE Multilin 系列中的繼電器模塊，專門設計用于電力系統中的保護和控制應用。該繼電器模塊提供了可靠的保護功能、監控能力以及控制選項，以確保電力系統的安全和穩定運行。
主要功能和特點
保護功能
- 過載保護：監測負載情況，防止設備因過載而損壞，確保電力系統的穩定性。
- 短路保護：檢測并響應電路中的短路情況，及時斷開電源以保護設備。
- 欠壓/過壓保護：監控電壓水平，提供欠壓和過壓保護，防止電壓異常導致的設備損壞。
控制功能
- 開關控制：支持對設備的開關控制，例如斷路器的啟停操作。
- 定時控制：提供定時功能，根據設定的時間執行控制操作，如設備啟停。
通信和集成
- 網絡接口：配備網絡接口，如以太網，用于與其他設備或系統進行數據交換和集成。
- 串行接口：提供串行通信接口（如RS-232、RS-485），用于與其他設備的串行數據通信。
用戶界面
- 顯示屏：配備顯示屏用于實時顯示設備狀態、操作參數和報警信息。
- 操作按鈕：提供操作按鈕，便于手動控制和設置模塊參數。
配置和調節
- 靈活配置：支持多種保護和控制參數的配置，以滿足不同應用的需求。
- 編程功能：允許用戶編寫自定義的控制邏輯和保護策略，適應特定的應用場景。
監控和診斷
- 實時監控：提供實時監控功能，跟蹤設備狀態和運行數據，確保系統的健康狀態。
- 故障診斷：內置故障診斷功能，能夠檢測并報告系統故障，幫助用戶迅速定位和解決問題。
應用領域
電力系統
- 變電站：用于變電站的保護和控制，確保電力系統的穩定性和安全性。
- 配電系統：在配電網絡中提供保護和控制功能，提高系統的可靠性和效率。
工業自動化
- 過程控制：用于工業過程控制系統中的保護和控制，確保生產設備的穩定運行。
- 設備管理：提供對工業設備的保護和控制，支持設備的高效管理。
發電廠
- 發電機控制：在發電廠中用于發電機的保護和控制，確保發電過程的安全和穩定。
- 系統集成：支持發電廠內各個系統的集成，優化整體系統的運行效率。
建筑設施
- 電力管理：在大型建筑設施中用于電力系統的保護和控制，確保電力系統的可靠運行。
- HVAC系統：為HVAC系統提供保護和控制功能，確保暖通空調設備的正常運行。
Multilin T60G03HCHF8LH6 繼電器模塊作為 GE Multilin 系列的關鍵組件之一，提供了全面的保護和控制功能，適用于各種電力系統和工業自動化應用，確保系統的穩定性和高效性。
英文資料：
Multilin T60G03HCHF8LH6 is a relay module in the GE Multilin series, specifically designed for protection and control applications in power systems. This relay module provides reliable protection functions, monitoring capabilities, and control options to ensure the safe and stable operation of the power system.
Main functions and features
Protection function
Overload protection: Monitor load conditions to prevent equipment damage due to overload and ensure the stability of the power system.
Short circuit protection: detect and respond to short circuits in the circuit, promptly disconnect the power supply to protect the equipment.
Undervoltage/Overvoltage Protection: Monitor voltage levels, provide undervoltage and overvoltage protection, and prevent equipment damage caused by abnormal voltage.
control function
Switch control: supports on/off control of equipment, such as the start/stop operation of circuit breakers.
Timer control: Provides a timer function to execute control operations such as device start and stop according to the set time.
Communication and integration
Network interface: Equipped with a network interface, such as Ethernet, for data exchange and integration with other devices or systems.
Serial interface: Provides serial communication interfaces (such as RS-232, RS-485) for serial data communication with other devices.
user interface
Display screen: Equipped with a display screen for real-time display of device status, operating parameters, and alarm information.
Operation buttons: Provide operation buttons for manual control and setting of module parameters.
Configuration and adjustment
Flexible configuration: Supports the configuration of multiple protection and control parameters to meet the needs of different applications.
Programming function: Allow users to write custom control logic and protection strategies to adapt to specific application scenarios.
Monitoring and Diagnosis
Real time monitoring: Provides real-time monitoring functionality to track device status and operational data, ensuring the health status of the system.
Fault diagnosis: Built in fault diagnosis function can detect and report system faults, helping users quickly locate and solve problems.
application area
Power system
Substation: Used for the protection and control of substations, ensuring the stability and safety of the power system.
Distribution system: Provide protection and control functions in the distribution network to improve the reliability and efficiency of the system.
industrial automation
Process control: used for protection and control in industrial process control systems to ensure the stable operation of production equipment.
Equipment management: Provides protection and control for industrial equipment, supporting efficient management of equipment.
power plant
Generator control: Used in power plants for the protection and control of generators, ensuring the safety and stability of the power generation process.
System integration: supports the integration of various systems within the power plant, optimizing the overall operational efficiency of the system.
Building facilities
Power management: Used for the protection and control of the power system in large building facilities, ensuring the reliable operation of the power system.
HVAC system: provides protection and control functions for the HVAC system to ensure the normal operation of HVAC equipment.
The Multilin T60G03HCHF8LH6 relay module, as one of the key components of the GE Multilin series, provides comprehensive protection and control functions, suitable for various power systems and industrial automation applications, ensuring system stability and efficiency.

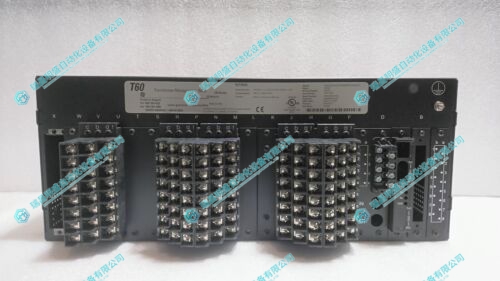

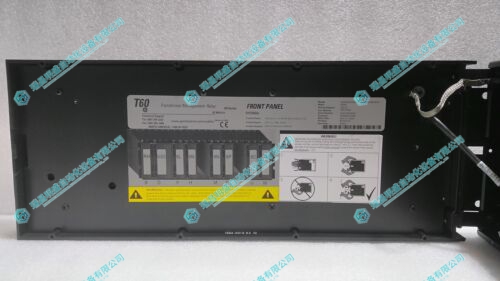

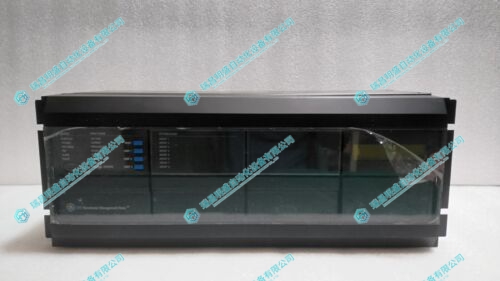

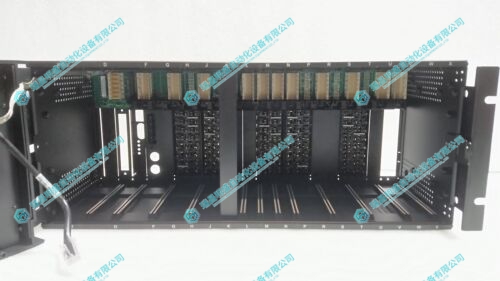

2.產 品 展 示
