Multilin F650MXCF1G4HI6數字間隔控制器
1.產 品 資 料 介 紹：
中文資料：
Multilin F650MXCF1G4HI6 是 GE Multilin 系列中的一款數字間隔控制器，主要用于電力系統中的保護和控制應用。它具有高級的控制和監測功能，適用于需要精確控制和可靠保護的場景。
主要功能和特點
數字間隔控制
- 間隔控制：實現對電力系統中設備的間隔控制，如對電機、變壓器或發電機進行分隔和控制操作。
- 定時功能：提供精確的定時控制功能，能夠根據設定的時間間隔進行操作或執行任務。
保護功能
- 過載保護：監測負載情況，防止設備因過載而損壞，確保系統的穩定性。
- 短路保護：檢測電路中的短路故障，并及時切斷電源以保護系統設備。
- 欠壓/過壓保護：監測電壓水平，防止因電壓異常導致的設備損壞。
通信和集成
- 網絡接口：支持多種網絡通信協議，如以太網，用于與其他設備或控制系統進行數據交換和集成。
- 串行接口：提供串行通信接口，如RS-232或RS-485，用于設備間的串行數據通信。
用戶界面
- 顯示屏：配備顯示屏，用于實時顯示系統狀態、控制參數和報警信息。
- 操作按鈕：提供用戶操作按鈕，用于手動控制和配置模塊的設置。
配置和調節
- 靈活配置：支持靈活的配置選項，用戶可以根據具體需求調整控制參數和保護設定。
- 編程功能：允許用戶編寫自定義的控制邏輯，以適應不同的應用場景。
監控和診斷
- 實時監控：提供實時監控功能，能夠跟蹤設備狀態和運行數據，確保系統的健康狀態。
- 故障診斷：內置故障診斷功能，能夠記錄和報告系統故障，幫助用戶迅速定位和解決問題。
應用領域
電力系統
- 變電站：在變電站中用于控制和保護設備，確保電力系統的穩定和安全。
- 配電系統：提供對配電網絡的間隔控制和保護功能，提高系統的可靠性和效率。
工業自動化
- 過程控制：用于工業自動化系統中的間隔控制和保護，確保生產過程的穩定性和安全性。
- 設備管理：提供對設備的間隔控制和監測，支持設備的高效管理。
發電廠
- 發電機控制：在發電廠中用于發電機的間隔控制和保護，確保發電過程的穩定和安全。
- 系統集成：支持發電廠內各個系統的集成，優化整體系統的運行效率。
建筑設施
- 電力管理：在大型建筑設施中用于電力系統的控制和保護，確保系統的可靠性。
- HVAC系統：為HVAC系統提供間隔控制和保護功能，確保暖通空調設備的正常運行。
Multilin F650MXCF1G4HI6 數字間隔控制器提供了精確的間隔控制和保護功能，適用于各種電力系統和工業自動化應用，確保系統的穩定運行和高效管理。
英文資料：
The Multilin F650MXCF1G4HI6 is a digital interval controller in the GE Multilin series, mainly used for protection and control applications in power systems. It has advanced control and monitoring functions, suitable for scenarios that require precise control and reliable protection.
Main functions and features
Digital Interval Control
Interval control: Implement interval control of equipment in the power system, such as separating and controlling motors, transformers, or generators.
Timer function: Provides precise timing control function, which can operate or execute tasks according to the set time interval.
Protection function
Overload protection: Monitor load conditions to prevent equipment damage due to overload and ensure system stability.
Short circuit protection: detect short circuit faults in the circuit and promptly cut off the power supply to protect system equipment.
Undervoltage/Overvoltage Protection: Monitor voltage levels to prevent equipment damage caused by abnormal voltage.
Communication and integration
Network interface: Supports multiple network communication protocols, such as Ethernet, for data exchange and integration with other devices or control systems.
Serial interface: Provides a serial communication interface, such as RS-232 or RS-485, for serial data communication between devices.
user interface
Display screen: equipped with a display screen for real-time display of system status, control parameters, and alarm information.
Operation buttons: Provide user operation buttons for manually controlling and configuring module settings.
Configuration and adjustment
Flexible configuration: Supports flexible configuration options, allowing users to adjust control parameters and protection settings according to specific needs.
Programming function: Allow users to write custom control logic to adapt to different application scenarios.
Monitoring and Diagnosis
Real time monitoring: Provides real-time monitoring functionality that can track device status and operational data to ensure the health status of the system.
Fault diagnosis: Built in fault diagnosis function can record and report system faults, helping users quickly locate and solve problems.
application area
Power system
Substation: Used in substations to control and protect equipment, ensuring the stability and safety of the power system.
Distribution system: Provides interval control and protection functions for the distribution network, improving the reliability and efficiency of the system.
industrial automation
Process control: used for interval control and protection in industrial automation systems to ensure the stability and safety of the production process.
Device management: Provides interval control and monitoring of devices, supporting efficient management of devices.
power plant
Generator control: Used in power plants for interval control and protection of generators, ensuring the stability and safety of the power generation process.
System integration: supports the integration of various systems within the power plant, optimizing the overall operational efficiency of the system.
Building facilities
Power management: Used for controlling and protecting power systems in large building facilities to ensure system reliability.
HVAC system: Provides interval control and protection functions for the HVAC system to ensure the normal operation of HVAC equipment.
The Multilin F650MXCF1G4HI6 digital interval controller provides precise interval control and protection functions, suitable for various power systems and industrial automation applications, ensuring stable operation and efficient management of the system.

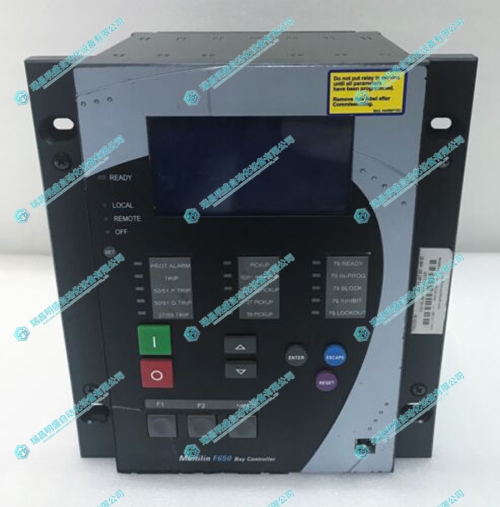

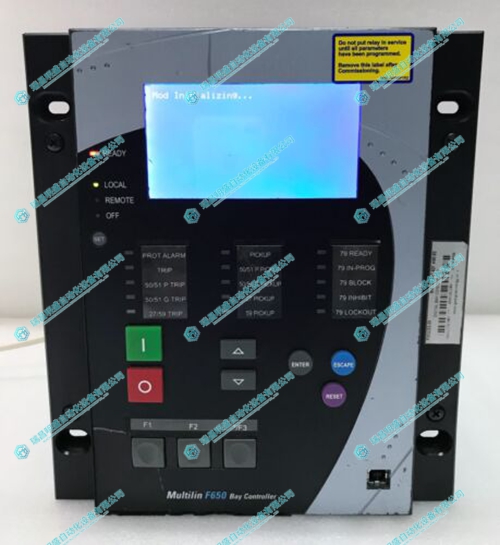

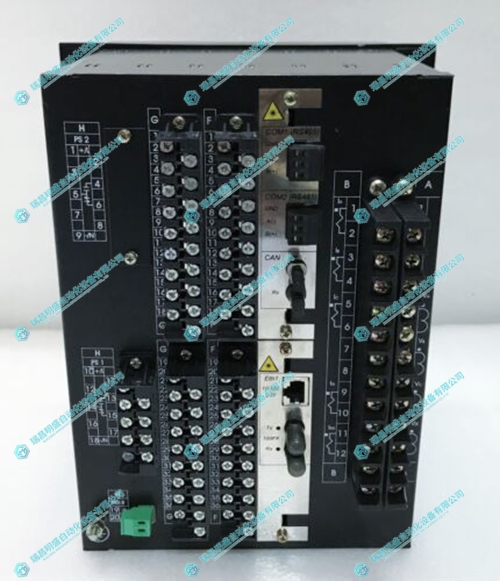

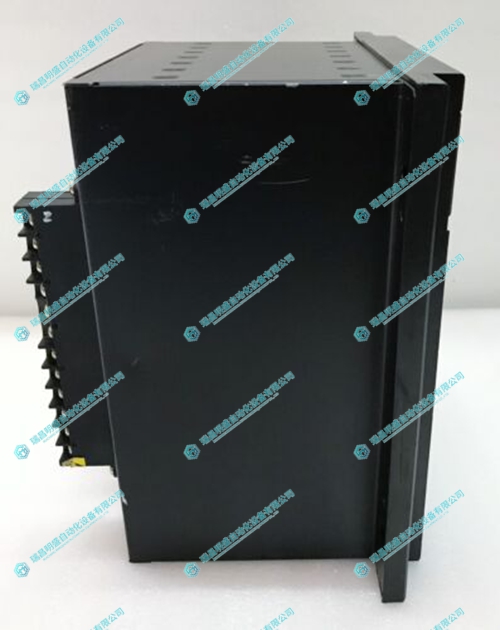

2.產 品 展 示
