multilin UR8HH多功能UR模塊
1.產 品 資 料 介 紹：
中文資料：
GE Multilin UR8HH 是一款多功能 UR（Universal Relay）模塊，專為電力系統中的保護、控制和監測應用設計。它集成了多種功能，提供全面的解決方案，適用于不同的電力設備和系統。
產品概述
- 型號：UR8HH
- 產品類型：多功能 UR 模塊
主要特點
- 多功能保護：支持多種保護功能，包括過電流、欠電壓、過電壓、接地故障等，適用于廣泛的電力系統保護需求。
- 靈活的配置：提供靈活的配置選項，可根據具體應用需求進行調整和優化。
- 高級控制功能：集成了先進的控制功能，如自動重啟、邏輯控制、延時操作等，增強了系統的控制能力。
- 實時監控：支持實時監控電力系統的運行狀態，包括電流、電壓、功率因數等參數。
- 用戶界面：配備直觀的圖形用戶界面（GUI），便于配置、操作和監控。
技術規格
- 型號：UR8HH
- 保護功能：
- 過電流保護：檢測并響應電流超出設定值的情況。
- 欠電壓/過電壓保護：防止電壓異常對設備造成損壞。
- 接地故障保護：監測接地故障，保護系統安全。
- 熱保護：防止因過熱而導致設備損壞。
- 控制功能：支持自動重啟、延時操作、邏輯控制等。
- 數據采集：實時采集和分析電流、電壓、功率因數等數據。
- 顯示與界面：高分辨率顯示屏和用戶友好的操作界面。
- 通訊接口：支持多種通信協議，如Modbus、DNP3、IEC 61850。
- 環境溫度：通常適應0°C到50°C的工作溫度范圍。
- 安裝方式：支持面板安裝或DIN導軌安裝。
應用領域
- 電力系統保護：用于電力系統中的綜合保護，確保系統安全穩定運行。
- 工業自動化：提供保護和控制功能，適用于各種工業自動化應用。
- 建筑電力管理：用于建筑物內的電力系統保護和控制，防止設備損壞。
- 能源管理：幫助優化能源使用，提供詳細的監控和控制功能。
安裝與維護
- 安裝：設備通常通過面板或DIN導軌安裝，具體安裝方式請參考產品手冊。
- 維護：設計簡潔，便于日常維護和檢查。建議定期檢查設備狀態和連接線，以確保正常運行。
優勢
- 全面保護：集成多種保護功能，確保系統的安全運行。
- 靈活配置：支持多種配置選項，適應不同應用需求。
- 強大通信能力：支持多種通信協議，便于系統集成。
- 用戶友好：直觀的界面和操作功能，簡化了配置和監控過程。
總結
GE Multilin UR8HH 多功能 UR 模塊是一款功能全面的保護和控制設備，專為電力系統中的各種應用設計。其綜合的保護功能、高級控制能力和強大的通信能力使其成為電力和工業自動化應用中的理想選擇。
英文資料：
GE Multilin UR8HH is a multifunctional Universal Relay (UR) module designed specifically for protection, control, and monitoring applications in power systems. It integrates multiple functions and provides comprehensive solutions suitable for different power equipment and systems.
Product Overview
Model: UR8HH
Product type: Multi functional UR module
main features
Multi functional protection: supports multiple protection functions, including overcurrent, undervoltage, overvoltage, ground fault, etc., suitable for a wide range of power system protection needs.
Flexible configuration: Provides flexible configuration options that can be adjusted and optimized according to specific application needs.
Advanced control functions: Integrated with advanced control functions such as automatic restart, logic control, delay operation, etc., enhancing the system's control capability.
Real time monitoring: supports real-time monitoring of the operating status of the power system, including parameters such as current, voltage, power factor, etc.
User Interface: Equipped with an intuitive graphical user interface (GUI) for easy configuration, operation, and monitoring.
technical specifications
Model: UR8HH
Protection function:
Overcurrent protection: detects and responds to situations where the current exceeds the set value.
Undervoltage/Overvoltage Protection: prevents abnormal voltage from causing damage to equipment.
Ground fault protection: Monitor ground faults to ensure system safety.
Thermal protection: prevent equipment damage caused by overheating.
Control function: supports automatic restart, delayed operation, logic control, etc.
Data collection: Real time collection and analysis of current, voltage, power factor, and other data.
Display and Interface: High resolution display screen and user-friendly interface.
Communication interface: Supports multiple communication protocols, such as Modbus, DNP3, IEC 61850.
Environmental temperature: typically suitable for a working temperature range of 0 ° C to 50 ° C.
Installation method: Supports panel installation or DIN rail installation.
application area
Power system protection: used for comprehensive protection in the power system to ensure safe and stable operation of the system.
Industrial Automation: Provides protection and control functions, suitable for various industrial automation applications.
Building power management: used for protecting and controlling the power system inside buildings to prevent equipment damage.
Energy management: helps optimize energy use, providing detailed monitoring and control functions.
Installation and maintenance
Installation: The equipment is usually installed through a panel or DIN rail. Please refer to the product manual for specific installation methods.
Maintenance: The design is simple and easy to maintain and inspect on a daily basis. It is recommended to regularly check the equipment status and connection wires to ensure normal operation.
advantage
Comprehensive protection: integrates multiple protection functions to ensure the safe operation of the system.
Flexible configuration: Supports multiple configuration options to meet different application needs.
Powerful communication capability: Supports multiple communication protocols for easy system integration.
User friendly: The intuitive interface and operational functions simplify the configuration and monitoring process.
summary
The GE Multilin UR8HH multifunctional UR module is a comprehensive protection and control device designed specifically for various applications in the power system. Its comprehensive protection functions, advanced control capabilities, and powerful communication capabilities make it an ideal choice for power and industrial automation applications.

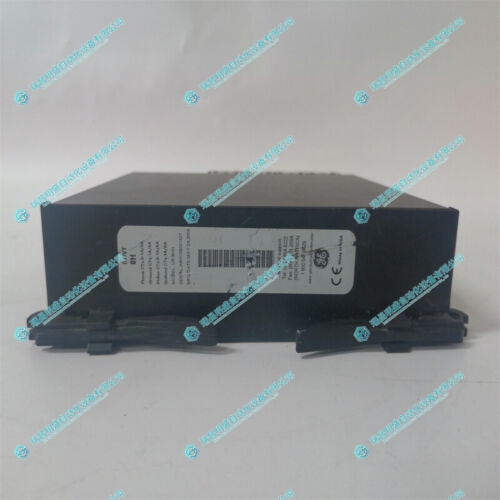

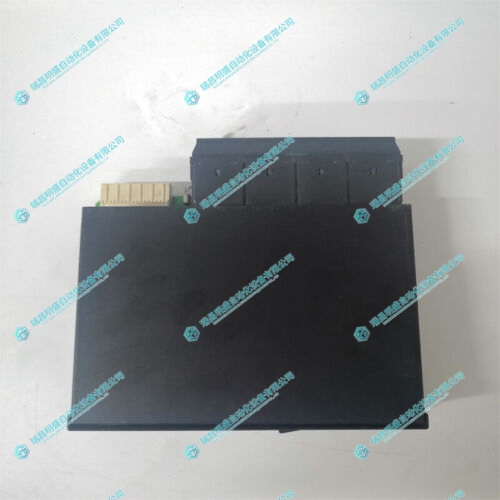

2.產 品 展 示
