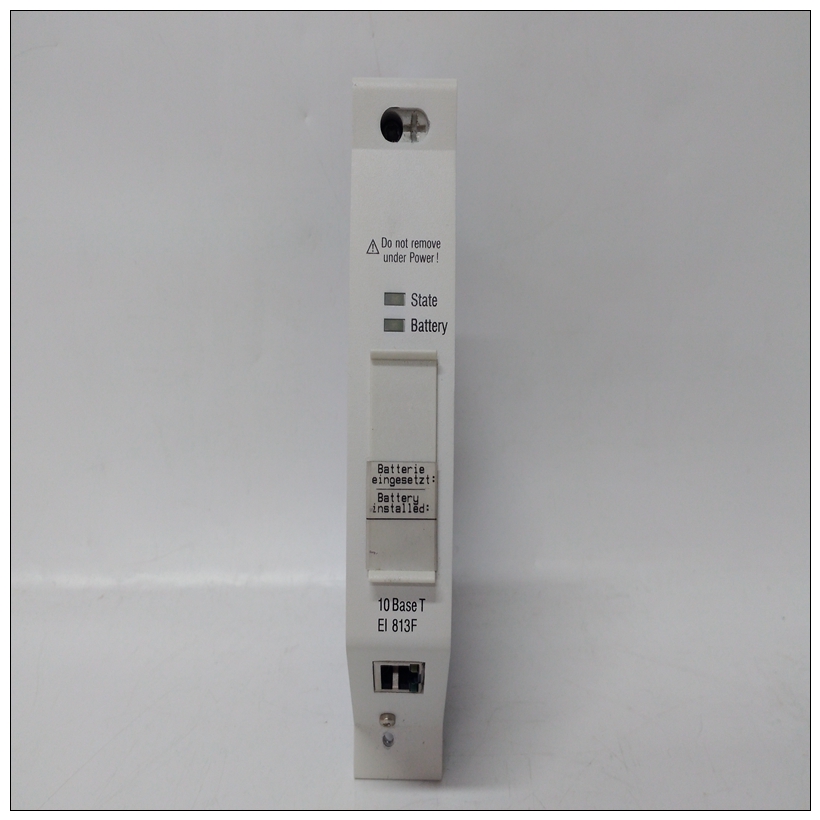

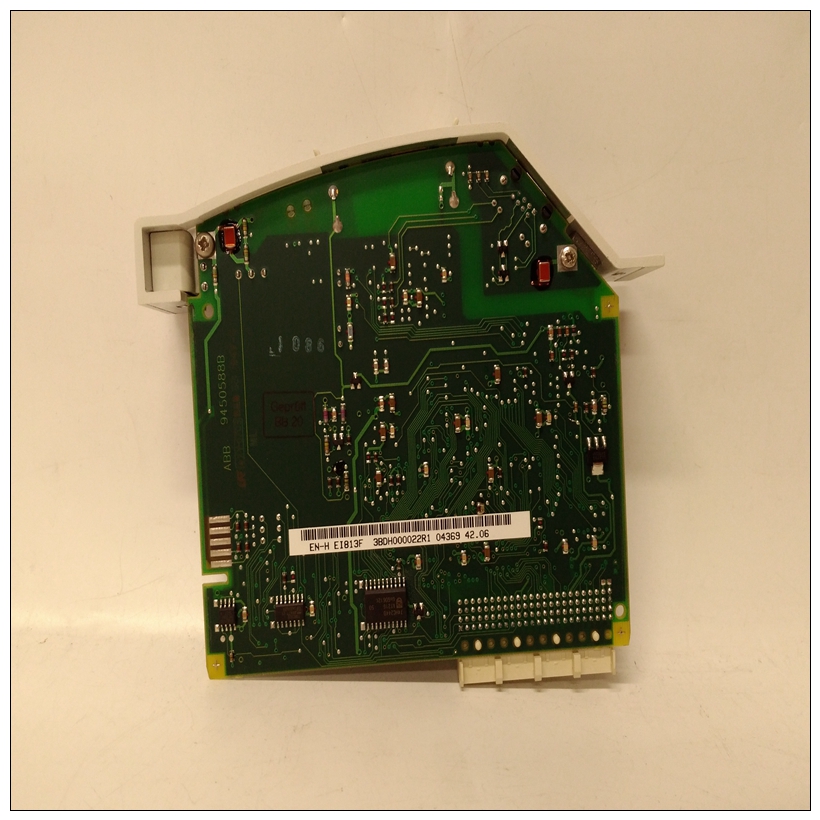

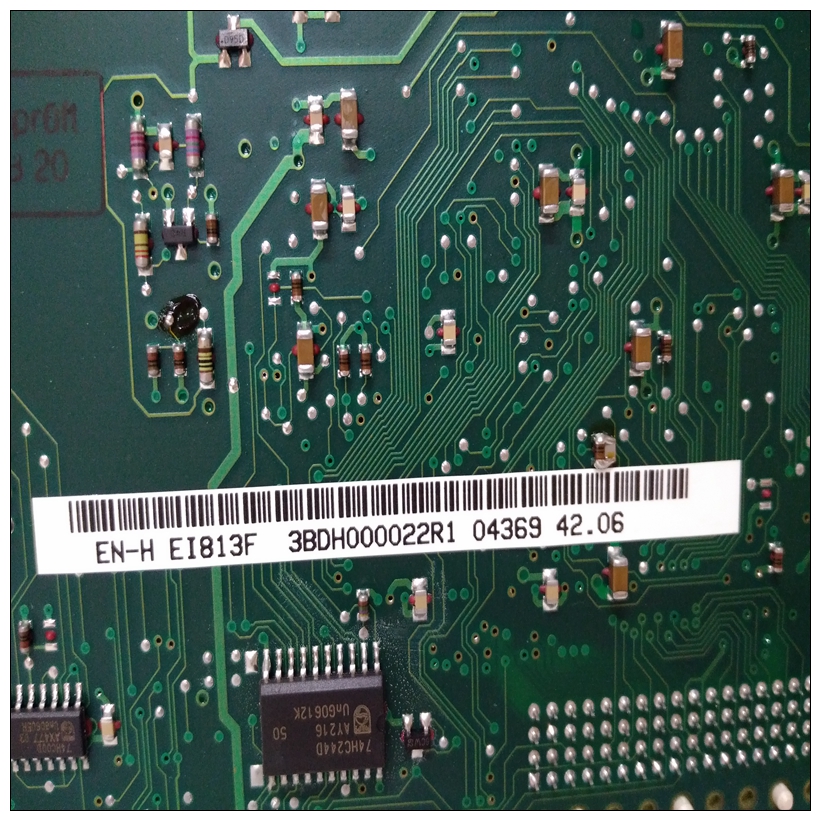

EI813F電子模件,EI813F中文說明
支持每個通道都有指示燈發送和接收活動的狀態。
RJ-45插孔已金屬化接地外殼。應使用屏蔽電纜，屏蔽連接到金屬化接頭殼體。
RS-232通信板CI271板是一個可選接口配有兩個RJ-45插孔，用于RS-232通道，每個都配有全套調制解調器控制信號?？砂惭b兩塊CI271板在AC 800C中。以太網通信板CI272板是一個可選接口帶一個用于以太網10Base-T的RJ-45插孔（雙絞線，最大電纜長度100 m）。
EI813F電子模件IP地址通過控件輸入建筑商M.可使用兩塊CI272板安裝在AC 800C中。冗余網絡可以進行布線。
電池/實時時鐘板SB210是AC 800C的可選板它包含一個鋰電池和一個實時時鐘。電池為實時時鐘供電并保存公羊至少一年。實時時鐘（RTC）跟蹤電源故障的持續時間。
如果沒有SB210，RAM內容可能是通電約20分鐘后丟失失敗應在以下時間更換蓄電池每年至少一次，或電池電量不足時電壓由閃爍的PWR指示
指示電池可以更換操作期間。
support. Each channel has LEDs indicating the status of transmit and receive activities. The RJ-45 jacks have metallized grounded housings. A shielded cable should be used, with the shield connected to the metallized housing of the connector. RS-232 communication board The CI271 board is an optional interface with two RJ-45 jacks for RS-232 channels, each with a full set of modem control signals. Two CI271 boards can be installed in AC 800C. Ethernet communication board The CI272 board is an optional interface with one RJ-45 jack for Ethernet 10Base-T (twisted pair, max. cable length 100 m). The IP address is entered via Control Builder M. Two CI272 boards can be installed in AC 800C. Redundant network routing is possible. Battery/real-time clock board SB210 is an optional board for AC 800C which contains a lithium battery and a realtime clock. The battery supplies the real-time clock with power and preserves the contents of the RAM for at least one year. The realtime clock (RTC) keeps track of the duration of a power failure. Without SB210, the RAM contents may be lost after about 20 minutes of power failure. The battery should be replaced at least once a year, or when low battery voltage is indicated by a flashing PWR indication. The battery can be replaced during operation.
