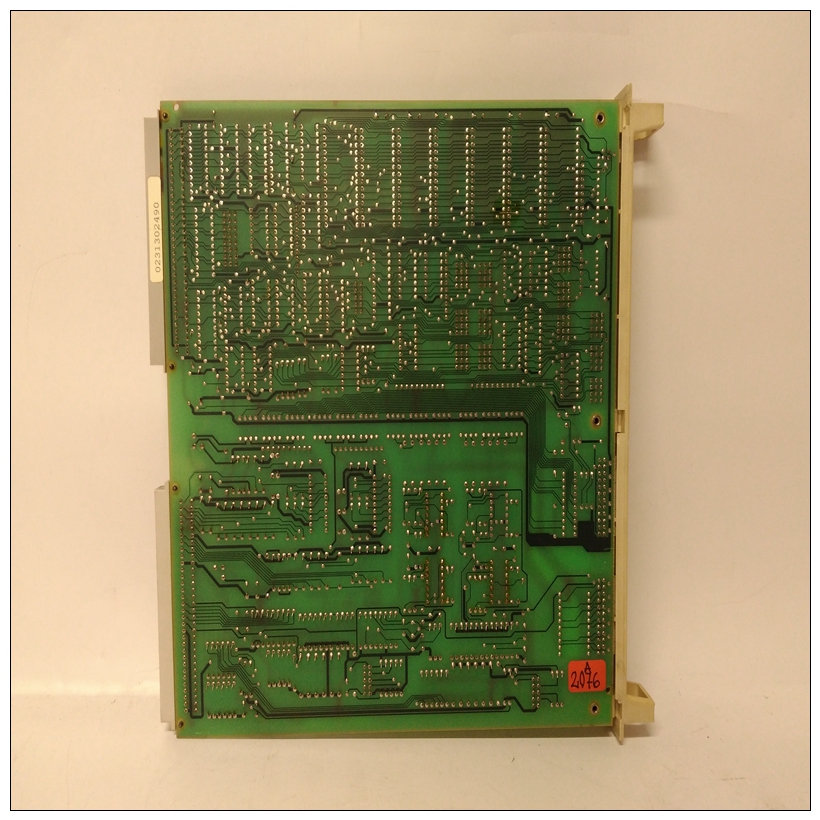

DSDP150熱電偶模塊,DSDP150使用方法
AC 800C是屬于AC 800系列的一種小型、經濟高效的控制器。
其配置和編程如下Control Builder M，Windows 2000?應用
AC 800C有10個數字輸入和6個車載數字輸出。取決于獲得的許可證，最多36個外部數字和/或模擬輸入/輸出單元也可以有聯系的。
控制器有兩個車載RJ-45RS-232通道的插孔。可選帶有實時時鐘和兩個可選通信插件可以安裝電路板。
特征：? 緊湊型設計
? DIN導軌安裝
? 數字車載輸入/輸出
? 可拆卸螺釘接線板電源和輸入/輸出連接
? 一系列許可證允許不同的輸入/輸出和功能能力
DSDP150熱電偶模塊? S200 I/O和S200L的I/O支持? 輸入/輸出通過串行輸入/輸出總線集中
? S200 I/O、S200L I/O、，S800型? 通過遠程輸入/輸出和S800L輸入/輸出PROFIBUS-DP（可選）
? 通過以下方式與其他系統通信RS-232和以太網（可選）
? 電池/實時時鐘板（可選）
? 功能強大的基于Windows 2000的配置和編程工具
獲得CE和UL認證
AC 800C is a small, cost-effective controller belonging to the AC 800 family. It is configured and programmed with Control Builder M, a Windows 2000? application. AC 800C has ten digital inputs and six digital outputs on board. Depending on the acquired license, up to 36 external digital and/or analog I/O units can also be connected. The controller has two on-board RJ-45 jacks for RS-232 channels. An optional battery board with a real-time clock and two optional communication plug-in boards can be installed. Features: ? Compact design ? DIN rail mounting ? Digital on-board I/O ? Detachable screw terminal blocks for power supply and I/O connections ? A range of licenses permitting different I/O and functional capabilities ? I/O support of S200 I/O and S200L? I/O centrally via the serial I/O bus ? I/O support of S200 I/O, S200L I/O, S800? I/O and S800L I/O remotely via PROFIBUS-DP (option) ? Communication with other systems by RS-232 and Ethernet (option) ? Battery/real-time clock board (option) ? Powerful Windows 2000-based configuration and programming tools ? Carries CE and UL approvals
