Alstom HE693THM449B熱電偶輸入模塊
1.產 品 資 料 介 紹：
中文資料：
Alstom HE693THM449B熱電偶輸入模塊是一款專為GE Fanuc 90-30系列可編程邏輯控制器（PLC）設計的輸入模塊。該模塊用于采集和處理來自熱電偶傳感器的溫度數據，廣泛應用于需要精確溫度監控和控制的工業自動化系統。以下是關于該模塊的詳細信息及其應用領域：
關鍵特點
多通道輸入：
- 提供多個熱電偶輸入通道，支持多點溫度測量和監控。
多種熱電偶類型支持：
- 兼容多種熱電偶類型，包括J型、K型、T型、E型等，適應不同的工業應用需求。
高精度測量：
- 提供高精度的溫度測量和數據處理，確保溫度監控的準確性和可靠性。
實時數據處理：
- 實時采集和處理溫度數據，支持快速響應和控制。
易于集成：
- 與GE Fanuc 90-30系列PLC無縫集成，通過標準編程軟件進行配置和管理，便于系統集成和應用。
診斷功能：
- 配備自診斷功能，能夠檢測和報告?zhèn)鞲衅鞴收匣蚓€路問題，確保系統運行的穩定性和安全性。
技術規格
- 輸入通道數：通常為4或8個熱電偶輸入通道
- 支持的熱電偶類型：J型、K型、T型、E型等
- 測量范圍：取決于熱電偶類型，通常覆蓋寬溫度范圍
- 精度：高精度溫度測量，具體精度取決于熱電偶類型和測量范圍
- 隔離保護：通道間和通道與系統間具備電氣隔離，防止干擾
應用領域
工業自動化：
- 用于生產過程中的溫度監控和控制，如冶金、化工、食品加工等行業的加熱和冷卻過程。
- 確保生產工藝的溫度控制在嚴格的范圍內，提高產品質量和生產效率。
過程控制：
- 在化工、石油、天然氣等過程工業中，監測和控制反應器、蒸餾塔等設備的溫度，確保工藝過程的安全和穩定。
- 實現溫度數據的實時采集和反饋，優化過程參數。
電力系統：
- 在發電廠和變電站中，監測變壓器、發電機等關鍵設備的溫度，防止過熱和故障。
- 提供實時溫度數據，支持設備的預防性維護和故障診斷。
暖通空調：
- 用于HVAC系統的溫度監控和控制，確保室內環境的舒適性和系統的高效運行。
- 監測和控制加熱、通風和空調設備的溫度，優化能源使用。
制藥行業：
- 在制藥生產過程中，監測和控制反應器、干燥機等設備的溫度，確保藥品生產的質量和安全。
- 提供精確的溫度控制，滿足嚴格的生產規范和要求。
科研實驗：
- 用于實驗室和科研機構的溫度測量和控制，支持各種科學實驗和研究。
- 提供高精度溫度數據，滿足科研實驗的需求。
總結
Alstom HE693THM449B熱電偶輸入模塊通過其多通道、高精度和多種熱電偶類型支持，廣泛應用于工業自動化、過程控制、電力系統、暖通空調、制藥行業和科研實驗等領域。它不僅提高了系統的溫度監控和控制能力，還確保了生產和運行過程的安全性和可靠性，幫助用戶實現高效、穩定的溫度管理。
英文資料：
The Alstom HE693THM449B thermocouple input module is an input module designed specifically for GE Fanuc 90-30 series programmable logic controllers (PLCs). This module is used to collect and process temperature data from thermocouple sensors, and is widely used in industrial automation systems that require precise temperature monitoring and control. The following is detailed information about the module and its application areas:
Key features
Multi channel input:
Provide multiple thermocouple input channels, supporting multi-point temperature measurement and monitoring.
Multiple thermocouple types supported:
Compatible with multiple thermocouple types, including J-type, K-type, T-type, E-type, etc., to meet different industrial application requirements.
High precision measurement:
Provide high-precision temperature measurement and data processing to ensure the accuracy and reliability of temperature monitoring.
Real time data processing:
Real time collection and processing of temperature data, supporting rapid response and control.
Easy to integrate:
Seamless integration with GE Fanuc 90-30 series PLC, configured and managed through standard programming software for easy system integration and application.
Diagnostic function:
Equipped with self diagnostic function, it can detect and report sensor faults or circuit problems, ensuring the stability and safety of system operation.
technical specifications
Number of input channels: typically 4 or 8 thermocouple input channels
Supported thermocouple types: J-type, K-type, T-type, E-type, etc
Measurement range: Depending on the type of thermocouple, typically covering a wide temperature range
Accuracy: High precision temperature measurement, specific accuracy depends on thermocouple type and measurement range
Isolation protection: Electrical isolation is provided between channels and between channels and systems to prevent interference
application area
Industrial automation:
Used for temperature monitoring and control in production processes, such as heating and cooling processes in industries such as metallurgy, chemical engineering, and food processing.
Ensure that the temperature of the production process is strictly controlled within a certain range to improve product quality and production efficiency.
Process control:
In process industries such as chemical, petroleum, and natural gas, monitoring and controlling the temperature of reactors, distillation towers, and other equipment ensures the safety and stability of the process.
Real time collection and feedback of temperature data, optimizing process parameters.
Power system:
Monitor the temperature of key equipment such as transformers and generators in power plants and substations to prevent overheating and malfunctions.
Provide real-time temperature data to support preventive maintenance and fault diagnosis of equipment.
HVAC:
Used for temperature monitoring and control of HVAC systems, ensuring the comfort of indoor environments and efficient operation of the system.
Monitor and control the temperature of heating, ventilation, and air conditioning equipment to optimize energy use.
Pharmaceutical industry:
In the pharmaceutical production process, monitoring and controlling the temperature of equipment such as reactors and dryers ensures the quality and safety of drug production.
Provide precise temperature control to meet strict production standards and requirements.
Research experiment:
Used for temperature measurement and control in laboratories and research institutions, supporting various scientific experiments and research.
Provide high-precision temperature data to meet the needs of scientific research experiments.
summary
The Alstom HE693THM449B thermocouple input module is widely used in industrial automation, process control, power systems, HVAC, pharmaceutical industry, and scientific research experiments due to its multi-channel, high-precision, and support for multiple thermocouple types. It not only improves the temperature monitoring and control capabilities of the system, but also ensures the safety and reliability of production and operation processes, helping users achieve efficient and stable temperature management.

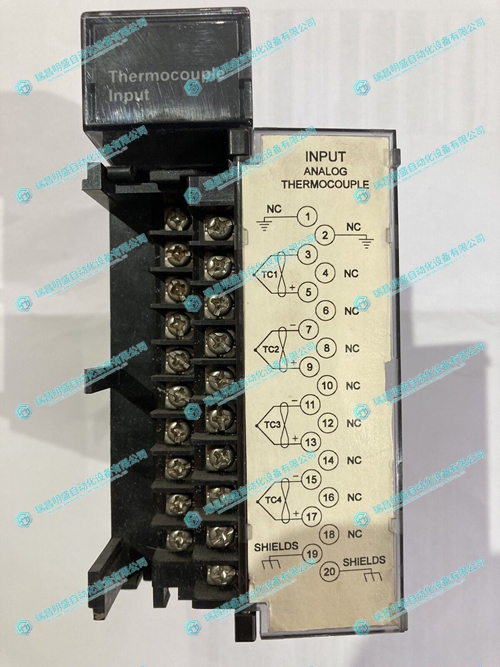

2.產 品 展 示
