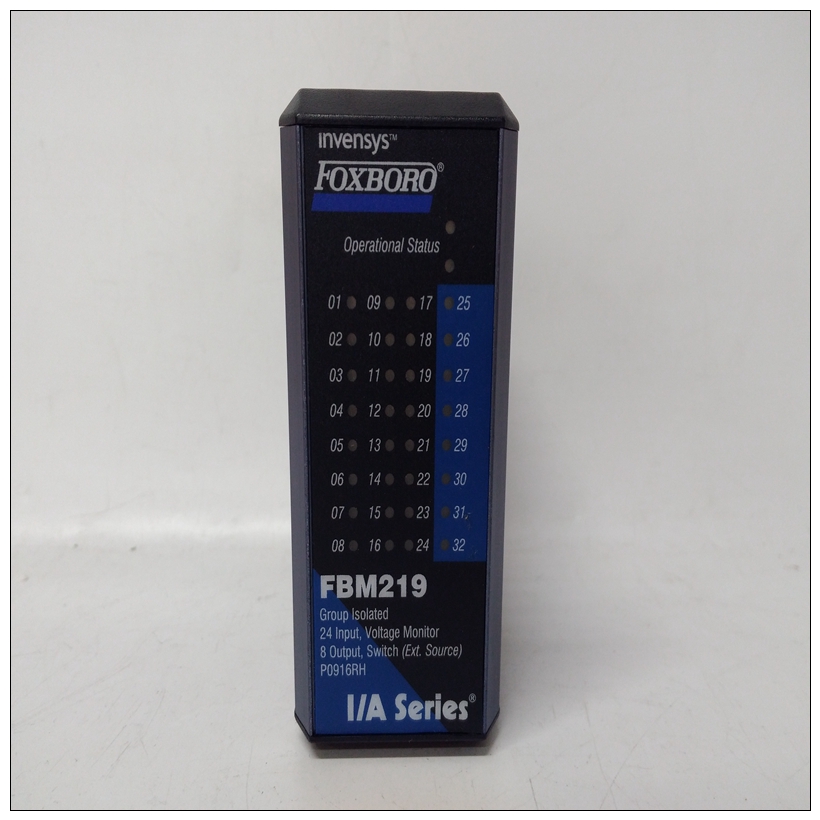

P0916RH輸出模塊,FOXBORO使用流程P0916RH
通過指定以下內容來配置網絡：
?本地卡-僅默認單選按鈕選擇。選擇串行單選按鈕。
?串行-選擇此單選按鈕進行串行通信。這是到的COM端口連接的串行電纜。
?RSLinx–如果安裝了許可的RSLinx，請指定驅動程序名稱和機架中的掃描儀模塊插槽。有關更多詳細信息，請參閱第12.3節，配置RSLinx連接。
P0916RH輸出模塊?驅動程序名稱–設置為通過以太網通信的RSLinx驅動程序的名稱使用掃描儀模塊
?插槽編號–掃描儀模塊在機架中的位置
?RSLinx路徑–如果掃描儀位于遠程機架中，則這是相關路徑。對于更多詳細信息，請參閱第12.3節，配置RSLinx連接。
?IP地址-使用以太網設備時1756-ENBT的IP地址和以太網/IP驅動程序。
不支持通過Linx網關驅動程序的遠程設備RSLinx Classic Professional/Gateway v2.54或更高版本。
P0916RH輸出模塊使用1756-ENET時，IP地址字段可以為空以太網TCP/IP通信ControlLogix模塊或RSLinx路徑包含IP地址。
?站-設置一個唯一的站號，該站號不被網絡
?波特率-不會檢測到不支持所選波特率的從屬設備
5、選擇“確定”保存設置。、準備瀏覽時，選擇搜索從屬圖標。擁有
已檢測到按站點地址順序顯示，如圖所示：
配置和編程DP
Configure the network by specifying the following:
?
Local Card - Default radio button selection only. Select the Serial radio button.
?
Serial - Select this radio button for serial communication. This is the COM port to
which your serial cable is connected.
?
RSLinx – If you have a licensed RSLinx installed, specify the Driver Name and
the scanner module slot in the rack. For more details, refer to Section 12.3,
Configuring the RSLinx Connection.
?
Driver Name – Name of the RSLinx Driver set up to communicate over Ethernet
with the scanner module
?
Slot Number – location of the scanner module in the rack
?
RSLinx Path – If the scanner is in a remote rack, this is the relevant path. For
more details, refer to Section 12.3, Configuring the RSLinx Connection.
?
IP Address - The IP address of the 1756-ENBT when using the Ethernet Devices
and Ethernet/IP drivers.
Note
Remote Devices via Linx Gateway driver is not supported with the
RSLinx Classic Profession/Gateway v2.54 or higher.
The IP Address field can be left blank when using the 1756-ENET
Ethernet TCP/IP Communications ControlLogix module or when
RSLinx path contains an IP address.
?
Station - Set a unique station number, one not used by any of the slaves on the
network
?
Baud Rate - Slaves that do not support the selected baud rate will not be detected
5.
Select OK to save your settings.
6.
Select the Search for Slave
icon when you are ready to browse. Slaves that have
been detected display in station address order, as shown:
Configuring and Programming the DP
