驅動調節由調節器板上的微處理器執行。看見圖2.9、2.10和2.11。驅動操作由輸入的參數進行調整通過鍵盤。調節器板接受電源電路反饋信號外部速度參考信號，以及來自連接到的編碼器的數據
設置FVC調節時的電機。調節器板提供：
?IGBT功率設備的PWM選通信號根據控制回路的輸出，調節器發送PWM選通信號通過電流反饋板至閘門驅動板上的隔離驅動器。
這些驅動器切換絕緣柵雙極晶體管（IGBT），產生與速度（FVC調節）或頻率（V/Hz）相對應的PWM波形法規）參考。IGBT可在2、4或8 kHz載波下切換頻率

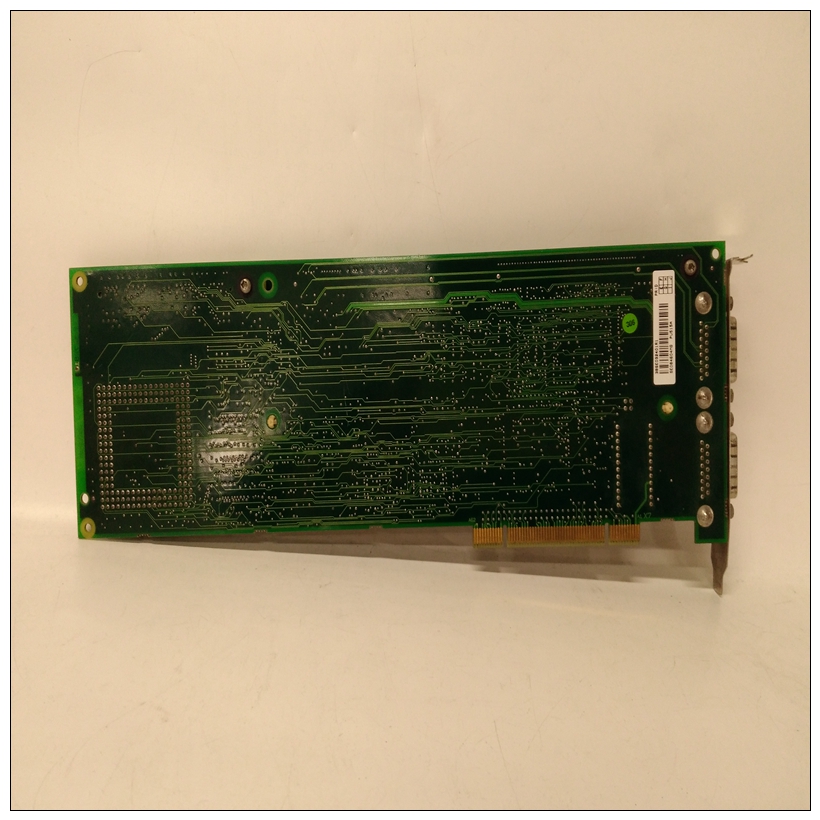

3BSE032401R1模塊控制卡件?驅動器狀態指示燈的表A和B觸點表格A和B觸點由用戶通過可編程參數。表格A或B轉換可指示驅動器狀態。聯系人為額定為250 VAC/30 VDC下的5安培電阻負載，可通過端子排。
?四字符顯示屏和十四個指示燈LED的顯示數據有關鍵盤/顯示器的說明，請參閱第2.8.6節。用于操作說明，請參閱GV3000/SE軟件參考手冊（D2-3359）。
?模擬輸出模擬輸出為標度電壓（0-10 VDC）或電流（4-20 mA）信號與電機轉速（RPM）或電機扭矩或電流（扭矩%）成比例。電流信號選擇（通過跨接導線J17）需要電源才能工作。
電源可從編碼器端子（4和9）或外部15V電源。詳見表7.3和7.8端子10和11信息模擬輸出信號可通過端子板獲得。
3BSE032401R1模塊控制卡件?緩沖電阻器制動信號1-60 HP調節器板提供供可選緩沖器使用的信號用于1-10 HP驅動器的電阻器制動套件。信號可通過終端獲得帶GV3000/SE驅動器上使用三個調節器板：
?1-60 HP調節板與1-60 HP驅動器一起使用（M/N 1V4XXX至60G4XXX）
?60-150 HP調節板與60-150 HP驅動器一起使用（M/N 75R4XXX至125R4XXX）
?200-400 HP調節板與200-400 HP驅動器一起使用（M/N 200V4XXX至400V4XXX）。
如圖2.9、2.10和2.11所示，調節器板相似，但具有不同的電源模塊接口連接器。
Regulator Board Description
Drive regulation is performed by a microprocessor on the Regulator board. See
figures 2.9, 2.10, and 2.11. Drive operation is adjusted by the parameters entered
through the keypad. The Regulator board accepts power circuit feedback signals and
an external speed reference signal, as well as data from an encoder that is attached to
the motor when set up for FVC regulation. The Regulator board provides:
?
PWM gating signals to the IGBT power devices
Based on the output of the control loop, the regulator sends PWM gating signals
through the Current Feedback board to isolated drivers on the Gate Driver board.
These drivers switch the Insulated Gate Bi-polar Transistors (IGBTs), producing a
PWM waveform that corresponds to the speed (FVC regulation) or frequency (V/Hz
regulation) reference. The IGBTs can be switched at either a 2, 4, or 8 kHz carrier
frequency.
?
Form A and B contacts for drive status indicators
The Form A and B contacts are under control of the user via programmable
parameters. A Form A or B transition can indicate drive status. The contacts are
rated for 5 amps resistive load at 250 VAC/ 30 VDC and are made available through
the terminal strip.
?
Display data for a four-character display and fourteen indicator LEDs
For a description of the keypad/display, refer to section 2.8.6. For operational
instructions, see the GV3000/SE software reference manual (D2-3359).
?
An analog output
The analog output is a scaled voltage (0-10 VDC) or current (4-20 mA) signal
proportional to either motor speed (RPM) or motor torque or current (%TORQUE).
The current signal selection (via jumper J17) requires a power supply for operation.
The power can be sourced from the encoder terminals (4 and 9) or from an external
15V power supply. See tables 7.3 and 7.8, terminals 10 and 11, for more
information. The analog output signal is available through the terminal strip.
?
A snubber resistor braking signal
The 1-60 HP Regulator board provides a signal for use by an optional snubber
resistor braking kit for 1-10 HP drives. The signal is available through the terminal
strip.
Three Regulator boards are used on the GV3000/SE drives:
?
1-60 HP Regulator boards are used with 1-60 HP drives (M/N 1V4XXX to
60G4XXX)
?
60-150 HP Regulator boards are used with 60-150 HP drives (M/N 75R4XXX to
125R4XXX)
?
200-400 HP Regulator boards are used with 200-400 HP drives (M/N 200V4XXX to
400V4XXX).
As shown in figures 2.9, 2.10, and 2.11, the Regulator boards are similar but have
different Power Module interface connectors.
