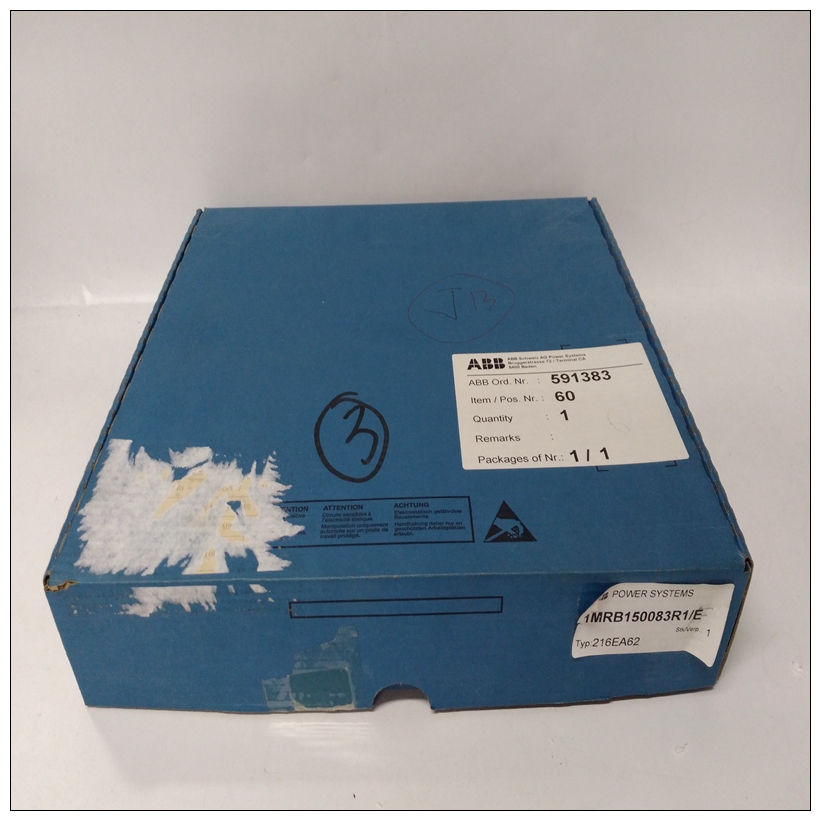

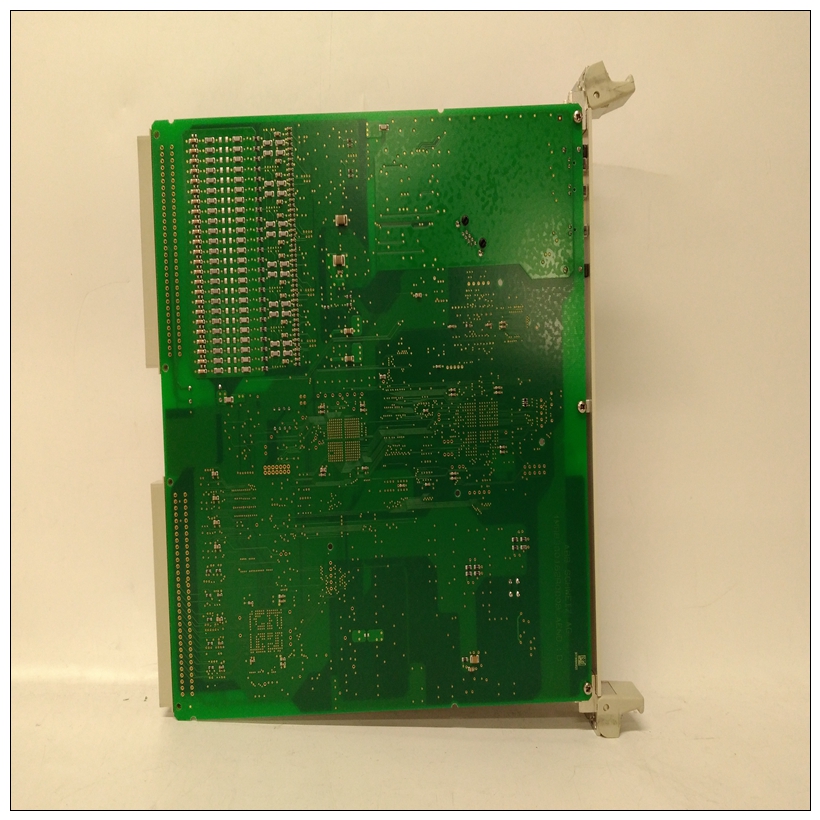

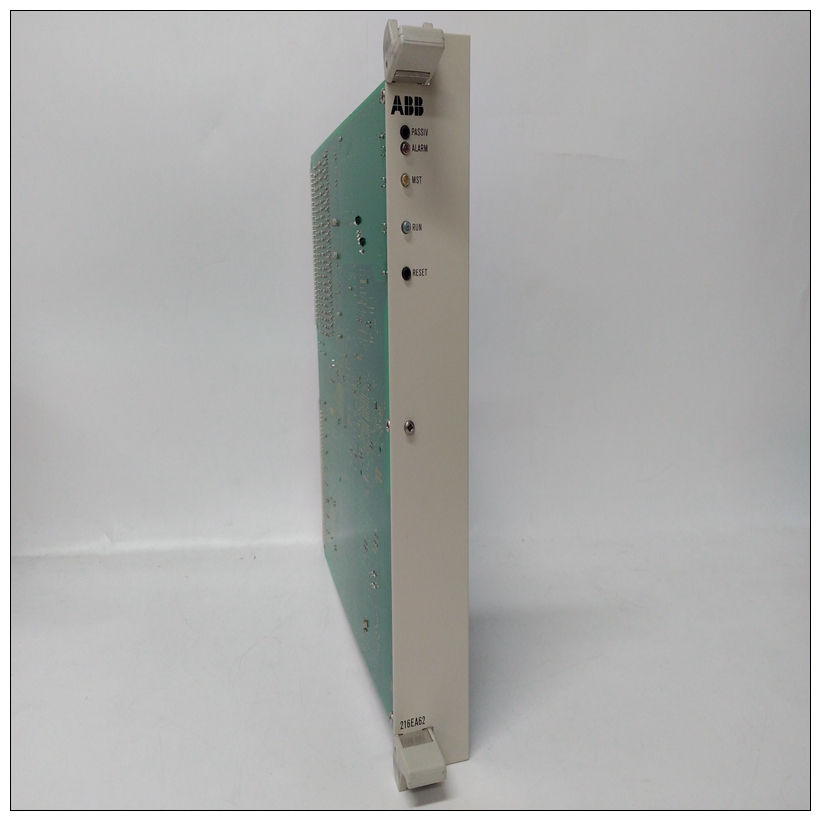

1MRB150083R1E卡件,1MRB150083R1E使用參數
超級標量RISC微處理器（高達150 MIPS）
?16 K內部CPU緩存RAM
?具有錯誤檢測和糾正功能的RAM內存PM 802F：4 MB靜態PM 803F：16 MB同步動態
?閃存EPROMPM 802F：4 MB，32位字PM 803F：8 MB，32位字
?EEPROM，串行，16 Kbit
?監測設備內部的溫度
?4個現場總線模塊插槽?2個以太網通信模塊插槽，32位數據總線，100 MB/s
?備用電池，包括電池監視器
1MRB150083R1E卡件基本單元PM 802F和PM803F分別循環通過相應的現場總線模塊，根據用戶安裝的應用程序處理這些信號，并發送適當?shù)耐ㄟ^現場總線模塊向現場總線執行器發送信號。
控制器冗余可通過安裝兩個AC 800F。為確保在主AC 800F發生故障時，secon dary AC 800F能夠快速、順利地接管通過第二個以太網的冗余通信鏈路模塊確保兩個AC 800F始終同步。所有輸入和輸出均設計為支持冗余活動
AC 800F、過程和操作員之間的數據通信站點通過第一個以太網上的以太網系統總線運行單元還通過系統總線與工程站進行數據交換。工程站通信可能涉及新的或更新的配置文件下載到工藝站，或有關正在報告連接的模塊。安裝或更換現場總線模塊時，所需的配置信息會自動更新。
配置和實時過程數據存儲在RAM中。到保護此數據以防斷電，RAM電源為
使用位于以太網模塊上的電池進行備份或在電池模塊上。PM 803F的內存比PM 802F多因此能夠處理較大的項目。由于增加內存大小和不同的技術緩沖時間減少。
Features
Page 4
June 2006
? Super Scalar RISC microprocessor (up to 150 MIPS)
? 16 K internal CPU cache RAM
? RAM memory with error detection and correction
PM 802F: 4 MB static
PM 803F: 16 MB synchronous dynamic
? Flash-EPROM
PM 802F: 4 MB, 32-bit words
PM 803F: 8 MB, 32- bit words
? EEPROM, serial, 16 Kbit
? Monitoring of the temperature inside the device
? Watchdog
? 4 slots for fieldbus modules
? 2 slots for Ethernet communications modules, 32-bit data
bus, 100 MBytes/s
? Battery backup incl. battery watchdog
Description
The basic unit, PM 802F and respectively PM803F, cyclically
scans signals from the fieldbus sensors via the corresponding
fieldbus modules, processes these signals according the appli
cation programs installed by the user and sends appropriate
signals to the fieldbus actuators via the fieldbus modules.
Controller redundancy can be achieved by installing two
AC 800F. To ensure quick and smooth takeover by the secon
dary AC 800F in case the primary AC 800F fails, a dedicated
redundancy communications link through the second Ethernet
module makes sure that both AC 800F are always synchro
nized. All inputs and outputs are designed to support redundant
operation.
Data communication between AC 800F, process and operator
stations runs over the Ethernet system bus on the first Ethernet
module. Data exchange with the engineering station is also car
ried via the system bus. Engineering station communications
can involve new or updated configuration files being
downloaded to the process stations, or information about the
connected modules being reported back. When fieldbus mod
ules are installed or exchanged, the required configuration in
formation is automatically updated.
Configuration and real-time process data is stored in RAM. To
safeguard this data in case of power loss, the RAM power is
backed up with batteries located either on the Ethernet modules
or on battery modules.
The PM 803F has more memory than the PM 802F and is
therefor capable to handle larger projects. Due to increased
memory size and different technology the buffering times were
reduced.
