IC698CPE040-JP中央處理器模塊
1.產 品 資 料 介 紹：
中文資料：
IC698CPE040-JP中央處理器模塊的產品特點主要包括以下幾個方面：
- 處理性能：
- 額定頻率為1800兆赫，具備高速的CPU和大容量的內存，能夠迅速執行程序和應用程序。
- 配備奔騰M微處理器，具備64 MB的用戶內存和64 MB的用戶閃存，支持復雜的控制邏輯和數據處理任務。
- 通信接口：
- 配備多種通信接口，如以太網、串行通信、Profibus、Modbus等，以及RS-232、RS-485等，以便與其他設備和系統進行數據交換。
- 機架式背板設計使得它可以與輸入/輸出和智能選件模塊之間通過VME64標準格式進行通信。
- 電源要求：
- 可以在5伏直流電、24伏直流電或-24伏直流電下運行，負載要求在5伏DC時為6.8安培，在12伏DC和-12伏DC時為0.003安培。
- 升級與兼容性：
- 具有相當大的內存容量和易于升級的能力，能夠適應新技術和新的工業應用要求。
- 設計用于RX7i PACSystem PLC或可編程邏輯控制器，可用于對設備、過程和物料處理結構執行實時控制。
- 故障診斷與監測：
- 具備故障診斷和狀態監測功能，能夠檢測和報告設備或系統故障。
- 獨立與隔離的串行端口：
- 包括3個串行端口，都是獨立和隔離的，可以通過CPU前面的連接器進行訪問。其中兩個端口可以用于對CPU進行固件升級或創建與外部設備的串行接口，第三個端口是以太網接口的工作站管理端口。
總結來說，IC698CPE040-JP中央處理器模塊是一款功能強大、高度集成的中央處理器，具有出色的處理性能、多樣的通信接口、靈活的電源要求、易于升級的能力以及強大的故障診斷和監測功能，適用于各種工業自動化應用。
英文資料
The product features of the IC698CPE040-JP central processing module mainly include the following aspects:
Processing performance:
Rated frequency is 1800 MHz, equipped with a high-speed CPU and large capacity memory, capable of quickly executing programs and applications.
Equipped with a Pentium M microprocessor, it has 64 MB of user memory and 64 MB of user flash memory, supporting complex control logic and data processing tasks.
Communication interface:
Equipped with various communication interfaces, such as Ethernet, serial communication, Profibus, Modbus, as well as RS-232, RS-485, etc., for data exchange with other devices and systems.
The rack mounted backplane design allows for communication with input/output and smart option modules through the VME64 standard format.
Power requirements:
It can operate at 5 volts DC, 24 volts DC, or -24 volts DC, with a load requirement of 6.8 amperes at 5 volts DC and 0.003 amperes at 12 volts DC and -12 volts DC.
Upgrade and Compatibility:
It has a considerable memory capacity and is easy to upgrade, and can adapt to new technologies and industrial application requirements.
Designed for RX7i PACSystem PLC or programmable logic controller, it can be used to perform real-time control on equipment, processes, and material handling structures.
Fault diagnosis and monitoring:
Equipped with fault diagnosis and status monitoring functions, capable of detecting and reporting equipment or system failures.
Independent and isolated serial ports:
Including 3 serial ports, all of which are independent and isolated, and can be accessed through the connector on the front of the CPU. Two of these ports can be used for firmware upgrades or creating serial interfaces with external devices on the CPU, while the third port is the workstation management port for Ethernet interfaces.
In summary, the IC698CPE040-JP central processing module is a powerful and highly integrated central processing unit with excellent processing performance, diverse communication interfaces, flexible power requirements, easy to upgrade capabilities, and powerful fault diagnosis and monitoring functions, suitable for various industrial automation applications.

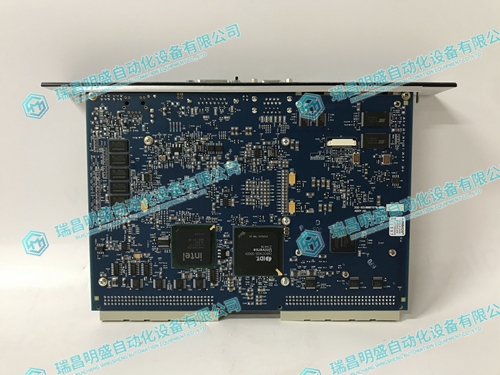

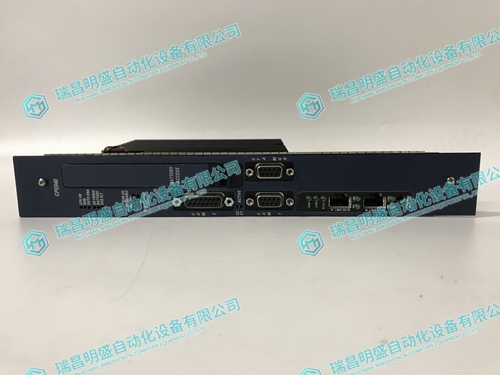

2.產 品 展 示
3.產 品 展 示
