IC660BBD022數字量模塊
1.產 品 資 料 介 紹：
中文資料：
IC660BBD022數字量模塊是一款由GE Fanuc生產的Genius I/O Block系列中的16電路源I/O模塊。以下是關于該模塊的詳細信息和特點：
- 概述：
- IC660BBD022是一個支持Genius協議的模塊，作為獨立的單節點I/O站，它提供了十六（16）個I/O電路，支持源接線配置。
- 技術參數：
- 工作電壓：24 / 48 VDC，使其能適應多種電壓需求。
- 輸入輸出配置：模塊的每個通道都可以獨立配置為輸入或輸出，具有高度的靈活性。
- 數據交換：通過Genius I/O總線端子，IC660BBD022可以與GE的可編程邏輯和自動化控制器（PLC/PAC）、總線控制器、PC接口模塊、人機界面（HMI）等模塊以及第三方設備進行數據交換。
- 設計特點：
- 安裝方式：該模塊是面板安裝的獨立設備，具有開放式外殼，需安裝在外殼內，以保護其免受工業污染物的損害。
- 遠程安裝：IC660BBD022支持遠程安裝，與伙伴設備的最大距離可達7500英尺。
- 菊花鏈連接：它支持菊花鏈連接其他I/O模塊，形成Genius I/O網絡，增強了系統的擴展性和靈活性。
- 配置與診斷：
- 配置方式：IC660BBD022支持兩種配置方式：本地配置和遠程配置。本地配置可以通過安裝在終端組件頂部的HHM端口，使用手持監視器（HHM）進行；遠程配置則可以使用主控制器的編程軟件進行。
- 診斷功能：該模塊具有診斷功能和安全措施，能夠輕松檢測過載、過熱、短路、空載和開關故障等錯誤，并通過I/O啟用和單元確定LED燈提醒操作員注意。
- 物理特性：
- 尺寸：IC660BBD022的尺寸為高8.83英寸、深4.42英寸、寬3.56英寸，體積小巧，節省面板空間。
- 電源與負載：它使用24伏直流電源，負載電流為2安培，可以與2線制和3線制傳感器一起使用。
- 其他功能：
- 可配置功能：包括輸出功率默認值、可選輸入濾波時間和輸出脈沖測試功能，為用戶提供更多的選擇和靈活性。
- 兼容性：IC660BBD022可以輕松地與GE的其他產品集成，為用戶提供全面的自動化解決方案。
總的來說，IC660BBD022數字量模塊是一款功能強大、配置靈活、易于安裝和維護的數字量I/O模塊，適用于各種工業自動化和控制應用。
英文資料
The IC660BBD022 digital quantity module is a 16 circuit source I/O module in the Genius I/O Block series produced by GE Fanuc. The following is detailed information and features about this module:
summary:
IC660BBD022 is a module that supports the Genius protocol. As an independent single node I/O station, it provides sixteen (16) I/O circuits and supports source wiring configuration.
Technical parameters:
Working voltage: 24/48 VDC, allowing it to adapt to various voltage requirements.
Input/output configuration: Each channel of the module can be independently configured as input or output, with a high degree of flexibility.
Data exchange: Through Genius I/O bus terminals, IC660BBD022 can exchange data with GE's programmable logic and automation controllers (PLC/PAC), bus controllers, PC interface modules, human-machine interface (HMI) modules, and third-party devices.
Design features:
Installation method: This module is a panel mounted independent device with an open casing that needs to be installed inside the casing to protect it from industrial pollutants.
Remote installation: IC660BBD022 supports remote installation, with a maximum distance of 7500 feet from partner devices.
Daisy chain connection: It supports daisy chain connection to other I/O modules, forming a Genius I/O network, enhancing system scalability and flexibility.
Configuration and Diagnosis:
Configuration method: IC660BBD022 supports two configuration methods: local configuration and remote configuration. Local configuration can be achieved through the HHM port installed at the top of the terminal component, using a handheld monitor (HHM); Remote configuration can be done using the programming software of the main controller.
Diagnostic function: This module has diagnostic function and safety measures, which can easily detect errors such as overload, overheating, short circuit, no-load, and switch faults, and remind operators to pay attention through I/O activation and unit determination LED lights.
Physical properties:
Dimensions: The dimensions of IC660BBD022 are 8.83 inches high, 4.42 inches deep, and 3.56 inches wide. It is compact and saves panel space.
Power and load: It uses a 24 volt DC power supply with a load current of 2 amperes and can be used with 2-wire and 3-wire sensors.
Other features:
Configurable features: including default output power value, optional input filtering time, and output pulse testing function, providing users with more choices and flexibility.
Compatibility: IC660BBD022 can easily integrate with other GE products, providing users with comprehensive automation solutions.
Overall, the IC660BBD022 digital quantity module is a powerful, flexible, easy to install and maintain digital quantity I/O module, suitable for various industrial automation and control applications.

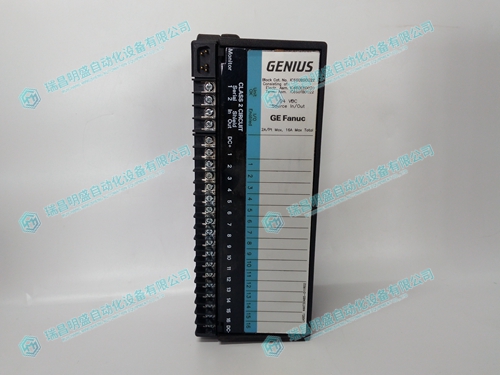

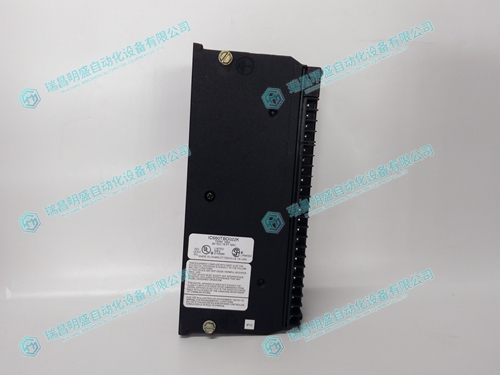

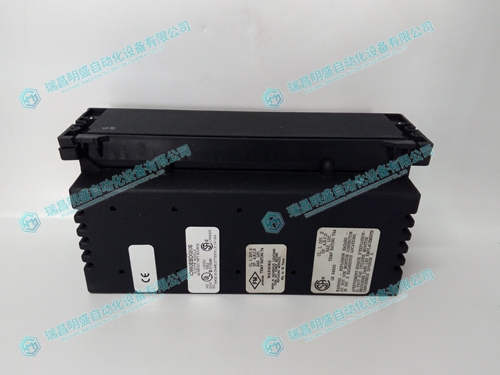

2.產 品 展 示
3.產 品 展 示
