IC693PWR321電源模塊
1.產 品 資 料 介 紹：
中文資料：
BENTLY 133442-01 轉速系統輸出模塊是一款專為轉速計系統設計的高性能模塊。以下是關于該模塊的詳細信息和特點：
- 主要功能：
- 接收和發送與轉速計相關的信號，實現數據采集和控制功能。
- 接收來自接近探頭或磁性傳感器的輸入，以確定軸轉速、轉子加速度或轉子方向。
- 與用戶可編程的警報設置點進行比較，并在違反設置點時生成警報。
- 技術規格：
- 輸入信號范圍：+10.0 V 至 -24.0 V
- 輸入阻抗：20 kΩ（標準）、40 kΩ (TMR)、7.15 kΩ（內部勢壘）
- 功耗：5.8 瓦（典型值）
- 輸出阻抗：550 Ω
- 閃存：6 MB
- NVRAM：8 KB
- IOX 處理器：50 MHz
- 產品尺寸：100mm x 50mm x 20mm
- 產品重量：1.2kg
- 性能特點：
- 多通道輸入/輸出：支持多個輸入和輸出通道，可以與多個傳感器、執行器或設備進行信號交互。
- 高精度：具備高精度的信號采集和輸出能力，確保數據的準確性和可靠性。
- 快速響應：具有快速的響應時間，能夠迅速處理輸入信號并觸發相應的輸出動作，滿足實時控制的需求。
- 安全可靠：采用安全可靠的設計和保護機制，能夠在嚴苛的工業環境中穩定運行，并保障設備和人員的安全。
- 應用領域：
- 工業：用于監測和保護旋轉機械設備，預防潛在的故障或損壞。
- 能源：在電力站、發電機組等能源設施中，監測發電機和其他旋轉設備的運行狀態。
- 石油和天然氣：在油田和天然氣設施中，監測離心壓縮機、泵和其他旋轉設備。
- 交通：在交通工具的發動機和其他旋轉部件上，用于監測和控制轉速。
- 航空航天：在飛機和航天器上，監測飛機發動機和其他旋轉設備。
- 編程與配置：
- 使用3500機架配置軟件進行編程和配置，支持多種配置選項，如速度監控、設定點警報、速度帶警報、零速通知、轉子加速度報警和反向旋轉通知等。
綜上所述，BENTLY 133442-01 轉速系統輸出模塊是一款功能強大、性能穩定的模塊，適用于各種轉速計系統的數據采集和控制，廣泛應用于工業自動化、能源、石油天然氣等領域。
英文資料
BENTLY 133442-01 Speed System Output Module is a high-performance module designed specifically for tachometer systems. The following is detailed information and features about this module:
Main functions:
Receive and send signals related to the tachometer to achieve data acquisition and control functions.
Receive inputs from proximity probes or magnetic sensors to determine shaft speed, rotor acceleration, or rotor direction.
Compare with user programmable alarm set points and generate alerts when set points are violated.
Technical specifications:
Input signal range:+10.0 V to -24.0 V
Input impedance: 20 k Ω (standard), 40 k Ω (TMR), 7.15 k Ω (internal barrier)
Power consumption: 5.8 watts (typical value)
Output impedance: 550 Ω
Flash memory: 6 MB
NVRAM：8 KB
IOX processor: 50 MHz
Product size: 100mm x 50mm x 20mm
Product weight: 1.2kg
Performance characteristics:
Multi channel input/output: Supports multiple input and output channels, allowing for signal interaction with multiple sensors, actuators, or devices.
High precision: With high-precision signal acquisition and output capabilities, ensuring the accuracy and reliability of data.
Quick response: With fast response time, it can quickly process input signals and trigger corresponding output actions, meeting the needs of real-time control.
Safe and reliable: Adopting a safe and reliable design and protection mechanism, it can operate stably in harsh industrial environments and ensure the safety of equipment and personnel.
Application field:
Industry: Used for monitoring and protecting rotating machinery and equipment, preventing potential malfunctions or damage.
Energy: Monitoring the operation status of generators and other rotating equipment in energy facilities such as power stations and generator sets.
Oil and natural gas: Monitoring centrifugal compressors, pumps, and other rotating equipment in oil fields and natural gas facilities.
Transportation: Used to monitor and control speed on the engine and other rotating components of transportation vehicles.
Aerospace: Monitoring aircraft engines and other rotating equipment on aircraft and spacecraft.
Programming and configuration:
Use 3500 rack configuration software for programming and configuration, supporting multiple configuration options such as speed monitoring, set point alarm, speed band alarm, zero speed notification, rotor acceleration alarm, and reverse rotation notification.
In summary, BENTLY 133442-01 Speed System Output Module is a powerful and stable module suitable for data acquisition and control of various tachometer systems, widely used in industrial automation, energy, oil and gas and other fields.

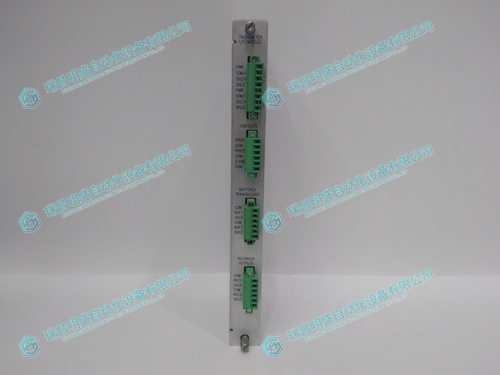

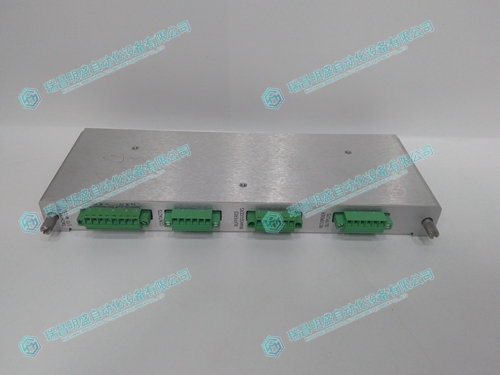

2.產 品 展 示
3.產 品 展 示
