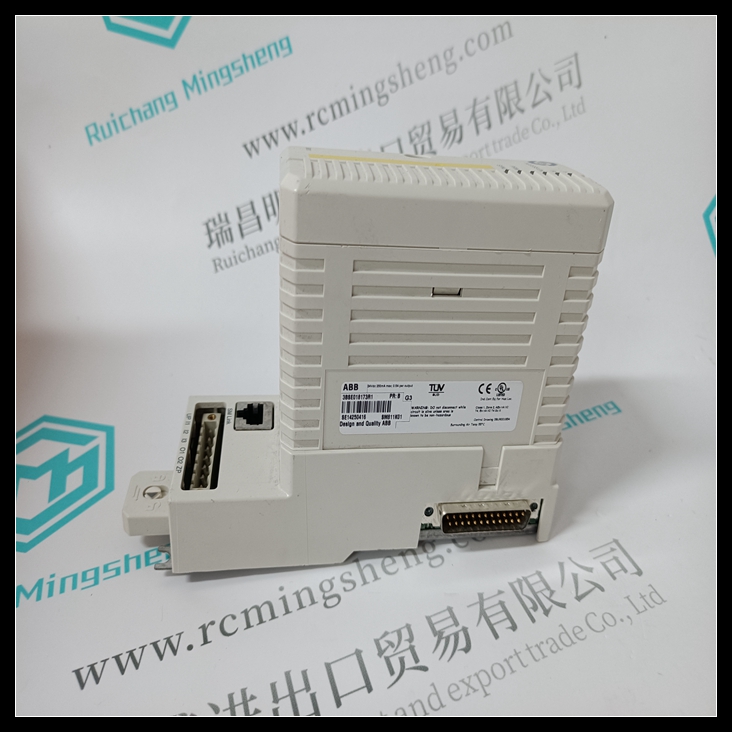

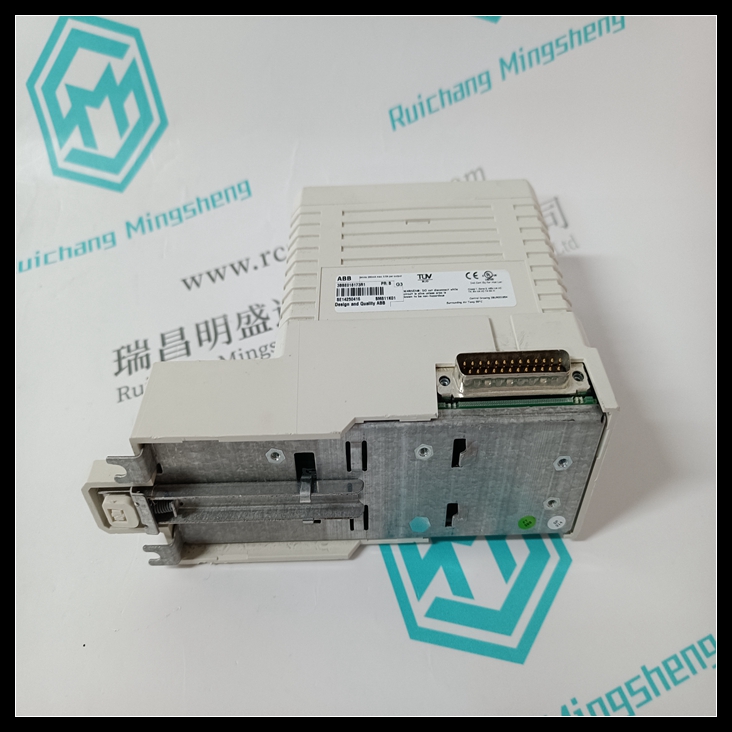

3BSE018173R1處理器模塊,3BSE018173R1控制系統
所有現場控制接線板必須安裝在35mm x 7.5mm DIN導軌上。
導軌必須具有導電（未涂漆）表面，以便正確接地。
使用多個軌道段時，確保它們正確對齊。SM811K01 3BSE018173R1使DIN導軌至少居中
距離輸入/輸出接線側的任何電線槽或其他障礙物4.25英寸（10.80厘米）
接線板。如果輸入/輸出模塊的接線非常僵硬，請留出更多空間。
為了增加抗振性，應使用間隔螺釘將DIN導軌安裝在面板上
相距約6英寸（5.24cm）。為獲得最大的抗振性，所有
接線板安裝耳。3BSE018173R1處理器模塊輸入/輸出接線板和輔助接線板的位置
安裝耳如右圖所示。
將接線板安裝到DIN導軌上后，安裝3/8英寸（9.525mm）#6個螺釘（非
提供）通過安裝耳。
All Field Control Terminal Blocks must be mounted on a 35mm x 7.5mm DIN rail.
The rail must have a conductive (unpainted) finish for proper grounding.
When using multiple rail sections, be sure they are properly aligned. Center the DIN rail at least
4.25 inches (10.80 cm) from any wireway or other obstruction on the wiring side of the I/O
Terminal Block. Allow more space if the wiring for I/O modules is very stiff.
For added vibration resistance, the DIN rail should be installed on a panel using screws spaced
approximately 6 inches (5.24cm) apart. For maximum vibration resistance, drill holes for all
terminal block mounting ears. Locations for I/O Terminal Block and Auxiliary Terminal Block
mounting ears are shown at right.
After mounting the terminal block on the DIN rail, install 3/8-inch (9.525mm) #6 screws (not
supplied) through the mounting ears.
