PROSOFT AN-X2-AB-DHRIO 網關通訊模塊
1.產 品 資 料 介 紹：
中文資料：
PROSOFT AN-X2-AB-DHRIO 網關通訊模塊是一款功能強大、性能卓越的通信模塊，具有多種優勢和特點，使其廣泛應用于工業自動化和控制系統領域。
首先，該模塊能夠連接多種設備，支持使用傳統遠程I/O（RIO）和數據高速公路增強型（DH+）通信協議的設備進行通信。這一特性使得該模塊能夠在不同的設備和系統之間實現數據傳輸和連接，提高了系統的靈活性和兼容性。
其次，PROSOFT AN-X2-AB-DHRIO網關通訊模塊具有高性能的特點。它具備高效的數據傳輸速率，支持10/100 mbps的數據傳輸速率，并可以通過配置支持不同的波特率，如57.6、115.2和230.4 K波特率。這種高性能保證了模塊在處理大量數據傳輸時具有出色的穩定性和實時性。
此外，該模塊還配備了靈活的通信接口，包括以太網I/P通信接口和一個2針Phoenix網絡連接器，可實現菊花鏈連接。這使得該模塊能夠輕松集成到各種設備和系統中，如Allen-Bradley的PLC、SLC 500、PanelView、驅動器和Flex I/O適配器模塊等。
除了基本的通信功能外，PROSOFT AN-X2-AB-DHRIO網關通訊模塊還具有一些額外的特性。它使用CFG端口作為其主要接口，并配備了明亮的LED指示燈，用于指示模塊狀態、電源狀態、應用程序狀態、端口活動和錯誤狀態等操作元素。此外，該模塊還支持與多達125個從屬設備進行通信，帶或不帶ProfiBus中繼器，并能夠處理多達1536個循環字節輸入以及1536個字節的輸出數據。
總的來說，PROSOFT AN-X2-AB-DHRIO網關通訊模塊是一款功能全面、性能卓越的通信模塊，它提供了高效、穩定的數據傳輸和連接功能，為工業自動化和控制系統領域的應用提供了強有力的支持。
英文資料
The PROSOFT AN-X2-AB-DHRIO gateway communication module is a powerful and high-performance communication module with various advantages and characteristics, making it widely used in the field of industrial automation and control systems.
Firstly, this module is capable of connecting multiple devices and supports communication between devices using traditional remote I/O (RIO) and data highway enhanced (DH+) communication protocols. This feature enables the module to achieve data transmission and connection between different devices and systems, improving the flexibility and compatibility of the system.
Secondly, the PROSOFT AN-X2-AB-DHRIO gateway communication module has the characteristic of high performance. It has an efficient data transfer rate, supports a data transfer rate of 10/100 mbps, and can support different baud rates such as 57.6, 115.2, and 230.4 K baud rates through configuration. This high performance ensures excellent stability and real-time performance of the module when handling large amounts of data transmission.
In addition, the module is equipped with flexible communication interfaces, including Ethernet I/P communication interfaces and a 2-pin Phoenix network connector, which can achieve daisy chain connection. This enables the module to be easily integrated into various devices and systems, such as Allen Bradley's PLC, SLC 500, PanelView, drivers, and Flex I/O adapter modules.
In addition to basic communication functions, the PROSOFT AN-X2-AB-DHRIO gateway communication module also has some additional features. It uses CFG ports as its main interface and is equipped with bright LED indicators to indicate operational elements such as module status, power status, application status, port activity, and error status. In addition, the module also supports communication with up to 125 slave devices, with or without ProfiBus relays, and can handle up to 1536 cyclic byte inputs and 1536 bytes of output data.
Overall, the PROSOFT AN-X2-AB-DHRIO gateway communication module is a comprehensive and high-performance communication module that provides efficient and stable data transmission and connection functions, providing strong support for applications in industrial automation and control systems.

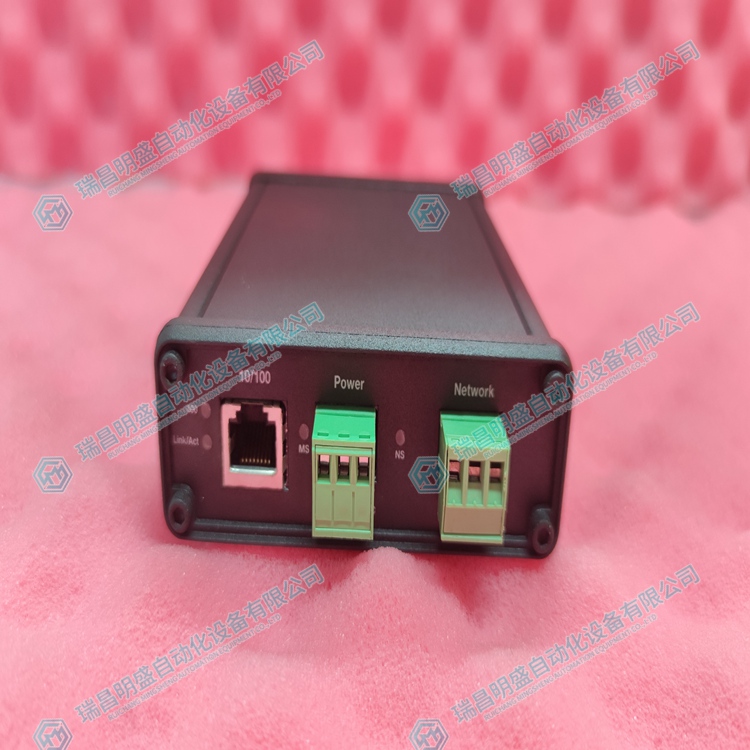

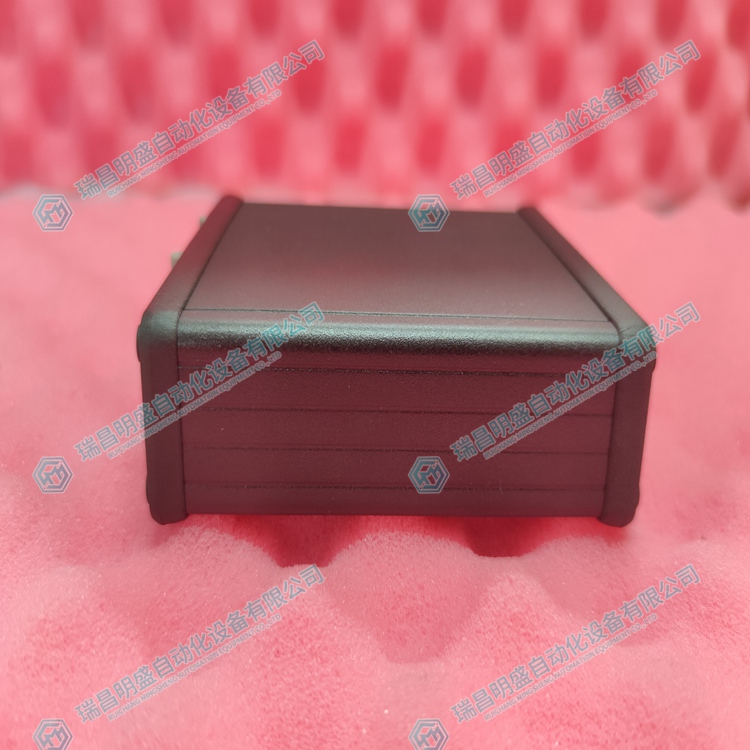

2.產 品 展 示
3.產 品 展 示
